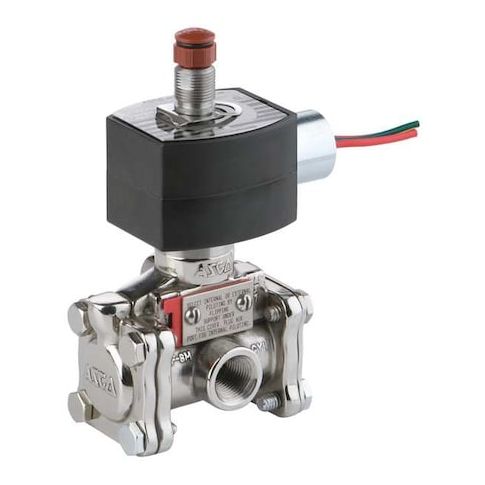

Solenoid Valve, 3-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 24V DC, Quick Closing, Brass MPN:EF8316H301
Free Shipping
In Stock
The ASCO EF8316H301 is a reliable and versatile 3-way, 2-position solenoid valve designed for industrial fluid control applications. Suitable for use with air, inert gases, and liquids, this valve features a brass body and quick closing characteristic for efficient control. With a nominal pipe size of 1/4 inch and NPTF connections, it can handle pressures up to 130 psi and temperatures up to 149°F. Ideal for use in a variety of industries, including manufacturing, oil and gas, and chemical processing, this valve offers precise control and durability in harsh environments. Its compact design makes it easy to integrate into existing systems.
Top product features:
- Direct Acting operation with Quick Closing characteristic
- Orifice Diameter of 5/16 in for controlled fluid flow
- NEMA Enclosure Ratings for use in a variety of hazardous locations
Top product applications:
- Air Compressor System
- Industrial Fluid Control Applications
- Laboratory Equipment
The ASCO EF8316H301 is a 3-way, 2-position direct acting solenoid valve designed to control the flow of air, inert gases, and liquids. It features a brass body and is equipped with a coil and seals. The valve operates in a normally closed configuration
- no time-to-close specification provided. It supports a nominal pipe size of 1/4 inch with NPTF inlet and outlet connections, intended for industrial fluid control applications with 1/4 in nominal pipe size, NPTF inlet/outlet, 0–130 psi differential, and maximum fluid temperature 149°F.
Key Features:
- - Valve Design: 3-Way/2-Position with Normally Closed starting configuration
- - Operation: Direct Acting with Quick Closing characteristic
- - Body Material: Brass construction
- - Orifice Diameter: 5/16 in
- - Nominal Pipe Size: 1/4 in
- Inlet and Outlet Connection Types: NPTF
- - Operating Pressure Differential: 0 to 130 psi for Air/Inert Gas
- - Fluid Temperature Maximum: 149°F
- - Media Compatibility: Air, Inert Gas, Liquids
- - Coil: Included with Explosion Proof, Watertight enclosure and Class F insulation
- - Electrical: 24V DC voltage, 0.55 W wattage, 1/2 in conduit with 18 in leads connection
- - Seal Material: NBR (Buna-N)
- - Environmental Ratings: Indoor, Outdoor, Hazardous locations
- - Overall Dimensions: Length 4-1/16 in, Width 2-1/16 in, Height 6 in
- - Standards: UL Listed
- - NEMA Enclosure Ratings: 3, 3S, 4, 4X, 6, 6P, 7, 9
- - Includes Seal: Yes
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.60
- Package Width: 4.40
- Package Height: 3.30
- Package Weight: 3.45
