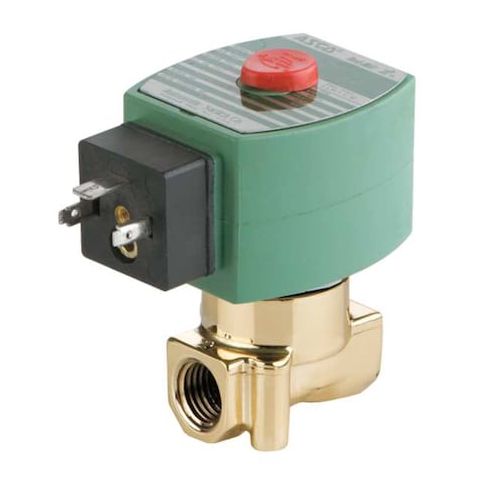

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 120V AC, High Flow, Brass MPN:SD8262H212
The ASCO SD8262H212 Solenoid Valve is designed for controlling the flow of air, inert gas, light oil, and water in industrial systems. Its normally closed configuration and high flow rate make it ideal for applications requiring precise fluid control. This valve is suitable for use in a variety of industries, including manufacturing, oil and gas, and chemical processing. Its durable brass construction and NBR seals ensure reliable operation in a range of temperatures and pressures. With its compact design and DIN electrical connections, this valve is easy to integrate into existing systems, providing a reliable and efficient solution for fluid control applications.
Top product features:
- Direct-acting operation allows for fast and reliable valve control.
- The valve is designed for use with air, inert gas, light oil, and water.
- The valve features a normally closed starting configuration.
Top product applications:
- Air Supply System
- Industrial Process Control
- Water Treatment Plant
The ASCO SD8262H212 Solenoid Valve is a direct-acting, 2-way, 2-position valve designed to control the flow of air, inert gas, light oil, and water. It features a normally closed starting configuration and includes the solenoid coil and sealing components needed for operation. The valve body is made of brass and utilizes NBR seals. It supports both horizontal and vertical mounting orientations and operates with a nominal voltage of 120V AC at frequencies of 50 Hz and 60 Hz. This valve is rated for ambient temperatures ranging from 14°F to 140°F and can handle fluid temperatures up to 180°F. It is intended for use with air, inert gas, light oil, and water in industrial systems, within the specified temperature and pressure ranges.
Key Features:
- - Valve Design: 2-Way/2-Position with Normally Closed configuration
- - Operation Type: Direct Acting
- - Body Material: Brass
- - Seal Material: NBR (Buna-N)
- - Included Components: Coil and Seal
- - Electrical Connections: DIN
- - Coil enclosure: Watertight
- Junction box not included
- - Coil Insulation Class: F
- - Voltage and Frequency: 120V AC, 50 Hz and 60 Hz
- - Maximum Operating Pressure Differential: 90 psi for Air/Inert Gas, Light Oil, and Water
- - Minimum Operating Pressure Differential: 0 psi for Air/Inert Gas, Light Oil, and Water
- - Nominal Pipe Size: 1/4 in
- Inlet and Outlet Connection Type: NPTF with NPT Thread Type
- - Orifice Diameter: 9/32 in
- - Dimensions: Overall Height 3-1/8 in, Length 1-9/16 in, Width 1-15/16 in
- - Environmental Rating: Indoor, Outdoor
- - IP Rating: 66
- - Standards: CSA, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.60
- Package Width: 3.50
- Package Height: 4.00
- Package Weight: 1.35
