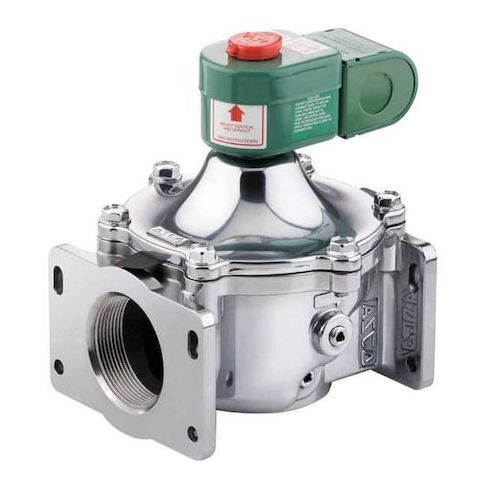

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1-1/2 in Pipe Size, 120V AC, Direct Acting, NBR MPN:JB8214270CSA
Free Shipping
In Stock
The ASCO JB8214270CSA Solenoid Valve is a reliable and efficient solution for on-off control of fuel gas in commercial and industrial gas burners. Its normally closed, 2-way/2-position design ensures safe and precise shut-off, while its aluminum body and test port facilitate easy maintenance and testing. Suitable for a wide range of applications, including commercial and industrial gas burners, this valve withstands temperatures from -40°F to 125°F and pressures up to 5 psi. Its compact design and durable construction make it an ideal choice for indoor and outdoor use, providing reliable performance and long-lasting service in demanding environments.
Top product features:
- Normally closed, 2-way/2-position design with a gas shut-off valve with test port
- Direct acting solenoid valve with a double solenoid actuator
- Seal material is NBR (Buna-N) for resistance to a variety of fluids
Top product applications:
- Commercial and industrial gas burners
- Fuel gas control systems
- Gas shut-off applications for outdoor use
The ASCO JB8214270CSA is a double solenoid, direct acting solenoid valve designed for on-off control of fuel gas in commercial and industrial gas burners. It features a normally closed, 2-way/2-position design with a gas shut-off valve with test port (Cv 35). The valve body is made of aluminum and includes a test port. Ambient Temperature Range: -40°F to 125°F. Maximum Fluid Temperature: 125°F. Environmental Rating: Indoor, Outdoor. Maximum differential pressure rating: 5 psi (air, inert gas, fuel gas, water).
Key Features:
- - Actuator Type: Double Solenoid
- - Body Material: Aluminum
- - Coil Enclosure: General Purpose, With Junction Box
- - Coil Insulation Class: F
- - Electrical Connections: 1/2 in Conduit with 18 in Leads
- - Includes Coil: Yes
- - Includes Seal: Yes
- - Inlet/Outlet Connection Type: NPTF
- - Nominal Pipe Size: 1-1/2 in
- - Orifice Diameter: 1-5/8 in
- - Operating Voltage: 120V AC
- - Wattage: 20 W
- - Valve Design: 2-Way/2-Position
- - Valve Positions: 2-Position
- - Valve Starting Configuration: Normally Closed
- - Valve Type: Gas shut-off valve with test port (Cv 35)
- - Flow Coefficient (Cv): 35
- - Gas Capacity: 1,887,200 BtuH
- - Environmental Rating: Indoor, Outdoor
- - Ambient Temperature Range: -40°F to 125°F
- - Maximum Fluid Temperature: 125°F
- - Seal Material: NBR (Buna-N)
- - Standards: CSA for Safety Shutoff, UL
- - NEMA Enclosure Rating: 1
- - Dimensions (L x W x H): 5-15/16 in x 5-3/8 in x 6-31/32 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.50
- Package Width: 7.50
- Package Height: 6.10
- Package Weight: 5.10
