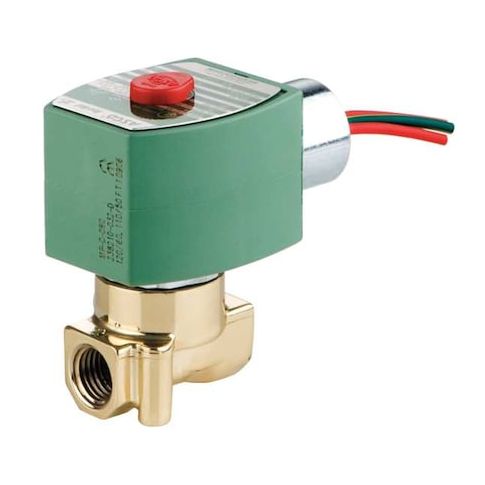

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/8 in Pipe Size, 120V AC, Cryogenic, Brass MPN:8263H206LT

• The ASCO 8263H206LT is a direct-acting, normally closed 2-way solenoid valve designed for controlling the flow of air, inert gases, light oil, and water. It features a brass valve body with PTFE seals and a 7/32-inch orifice diameter. The valve operates with a 120V AC coil that consumes 17.1 watts and includes the coil for actuation. It accommodates inlet and outlet connections with NPTF threading and supports horizontal or vertical mounting orientations. The valve is designed for controlling the flow of air, inert gases, light oil, and water. Its operational temperature range supports ambient conditions from -13°F to 131°F and fluid temperatures up to 150°F. The valve has a maximum operating pressure differential of 90 psi for air and inert gases and 100 psi for cryogenic fluids.

  Key Features:

  • - Valve Design: 2-Way/2-Position, Normally Closed configuration
  • - Valve Type: Cryogenic
  • - Body Material: Brass
  • - Seal and Seat Material: PTFE
  • - Orifice Diameter: 7/32 in
  • - Electrical Specifications: 120V AC, 60 Hz, 17.1 W coil power consumption
  • - Coil Enclosure: Watertight
  • no junction box included
  • - Electrical Connections: 1/2 in conduit with 18 in leads
  • - Operating Pressure Differential: 0 to 90 psi (Air/Inert Gas), 0 to 100 psi (Cryogenic Fluid)
  • - Ambient Temperature Range: -13°F to 131°F
  • - Fluid Temperature Maximum: 150°F
  • - Nominal Pipe Size: 3/8 in
  • - Mounting Orientation: Horizontal or Vertical
  • - Overall Dimensions: 3-3/16 in height, 1-7/8 in length, 1-15/16 in width
  • - Response Time: 1 second
  • - Standards: CSA Certified, Meets Applicable CE Directives
