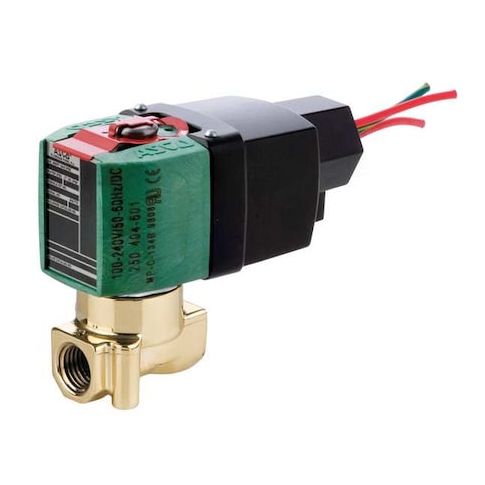

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 100V to 240V AC/DC, High Flow MPN:8262R232
Free Shipping
In Stock
The ASCO 8262R232 Solenoid Valve is a reliable and efficient solution for controlling flow in various applications, including air, inert gases, light oil, and water systems. Its direct-acting, normally closed design ensures precise control and high flow rates, making it ideal for use in HVAC, industrial processes, and laboratory settings. With its robust brass construction, NBR seals, and Class H insulation, this valve withstands extreme temperatures and pressures, providing a long-lasting and trouble-free operation. Its compact design and easy installation make it a versatile choice for a wide range of applications, from commercial to industrial settings.
Top product features:
- Direct-acting, normally closed solenoid valve for controlling flow of air, inert gases, light oil, and water
- High flow performance with Cv of 0.35 and orifice diameter of 1/8 in
- Watertight coil enclosure without a junction box, with electrical connections via 1/2 in conduit with 18 in leads
Top product applications:
- Water Treatment Systems
- Automotive Air Conditioning Systems
- Industrial Process Control Systems
The ASCO 8262R232 is a direct-acting, normally closed solenoid valve for controlling flow of air, inert gases, light oil, and water. It features a 2-way/2-position valve design
- flow characteristics: Cv 0.35
- orifice diameter 1/8 in. The valve body is constructed of brass and uses NBR seals, with media temperature range: up to 180°F
- ambient temperature range: -13°F to 131°F. This valve includes a coil with Class H insulation, operates across 100V to 240V AC/DC at 60 Hz, and has a watertight coil enclosure without a junction box.
Key Features:
- - Valve Type: Direct-acting, normally closed solenoid valve for controlling flow of air, inert gases, light oil, and water
- - Body Material: Brass with NBR (Buna-N) seals
- - Connection: 1/4 in NPTF inlet and outlet, center line pipe size 2-3/4 in
- - Electrical: 100V to 240V AC/DC at 60 Hz
- coil insulation Class H
- 2 W power consumption
- - Coil Enclosure: Watertight, without junction box
- electrical connections via 1/2 in conduit with 18 in leads
- - Flow Performance: Cv of 0.35
- orifice diameter 1/8 in
- - Operating Pressure Differential: Maximum 540 psi air/inert gas, 360 psi light oil, 395 psi water
- minimum 0 psi for all listed media
- - Environmental rating: IP66
- - Dimensions: Overall length 3-31/32 in, height 3-1/16 in, width 1-7/8 in
- - Mounting Orientation: Horizontal or Vertical
- - Standards: CE, CSA, UL Listed
- IP Rating 66
- - Includes: Solenoid coil and sealing components
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.20
- Package Width: 3.10
- Package Height: 5.00
- Package Weight: 1.45
