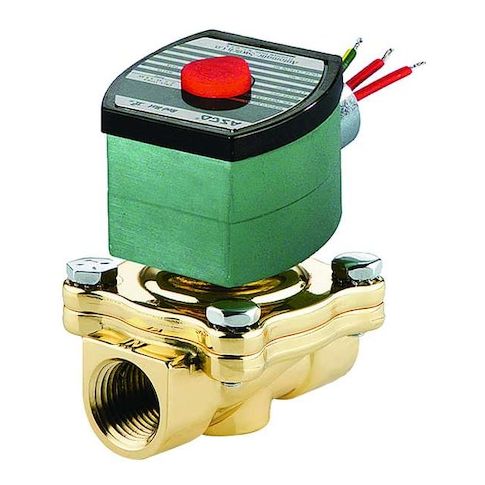

Solenoid Valve, 2-Way, 2-Position, Normally Open, 1-1/4 in Pipe Size, 120V AC, High Flow, Brass MPN:8210G018

• The ASCO 8210G018 Solenoid Valve is a pilot-operated, 2-way/2-position valve designed for automated control of air, inert gas, light oil, and water flow. It features a normally open starting configuration and is constructed with a brass body for durability. This valve operates within ambient temperatures ranging from 14°F to 140°F, and media temperatures up to 180°F. Media Compatibility: Air, Inert Gas, Light Oil, Water. Electrical operation requires 120V AC at 60 Hz with a coil wattage of 16.1 W and includes the coil and seals necessary for installation.

  Key Features:

  • - Valve Design: 2-Way/2-Position, Normally Open starting configuration
  • - Operation: Pilot Operated
  • - Body Material: Brass
  • - Media Compatibility: Air, Inert Gas, Light Oil, Water
  • - Maximum Ambient Temperature: 140°F
  • Minimum Ambient Temperature: 14°F
  • - Maximum Fluid Temperature: 180°F
  • - Maximum Operating Pressure Differential: 150 psi for Air/Inert Gas and Water, 125 psi for Light Oil
  • - Minimum Operating Pressure Differential: 5 psi for Air/Inert Gas, Light Oil, Water
  • - Orifice Diameter: 1-1/8 in
  • - Nominal Pipe Size: 1-1/4 in NPT inlet and outlet connections
  • - Mounting Orientation: Vertical
  • - Coil Enclosure: Watertight, Without Junction Box
  • - Electrical Connections: 1/2 in Conduit Hub
  • - Coil Insulation Class: F
  • - Response Time: 1 second
  • - Includes: Coil and Seal
  • - IP Rating: 66
  • - NEMA Enclosure Rating: 1, 2, 3, 3S, 4, 4X
  • - Valve Type: High Flow
  • - Valve Ways: 2-Way
  • - Dimensions: Overall Height - 6-7/16 in
  • Overall Length - 3-21/32 in
  • Overall Width - 3-3/4 in
  • - Seal Material: NBR
  • - Standards: UL Listed
