Solenoid Valve, 2-Way, 2-Position, Normally Closed, 2 in Pipe Size, 120V AC, Diaphragm, Piston MPN:8220G031

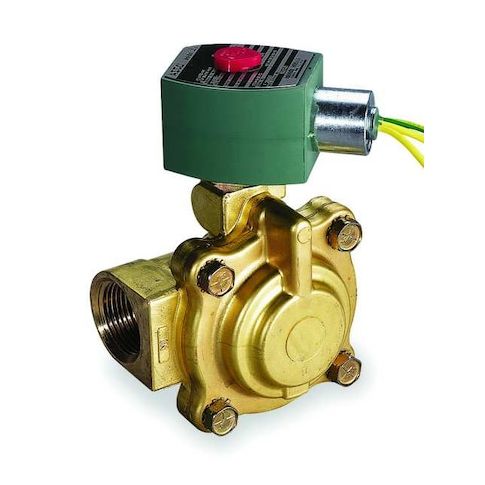

The ASCO 8220G031 Solenoid Valve is a reliable and efficient solution for controlling the flow of hot water and steam in various industrial applications. Its normally closed, 2-position diaphragm design ensures precise control and minimizes fluid leakage. Suitable for use in hot water systems up to 210°F and steam systems up to 353°F, this valve is ideal for HVAC, process control, and power generation industries. With its compact design and easy installation, the ASCO 8220G031 Solenoid Valve is a versatile and reliable choice for applications where precise fluid control is critical.
Top product features:
- The valve features a normally closed, 2-position diaphragm design.
- The valve is designed for controlling the flow of hot water and steam.
- The valve body is made of brass with a PTFE seal material.
Top product applications:
- Hot water heating systems
- Steam power systems
- Industrial process control systems
The ASCO 8220G031 Solenoid Valve is an electromechanical, pilot-operated valve designed for controlling the flow of hot water and steam. It features a normally closed, 2-position diaphragm design with a 2-inch nominal pipe size and a 1-3/4 inch orifice diameter. The valve body is made of brass, and it includes a PTFE seal. Rated for ambient temperature range: 14–140°F and rated for maximum fluid temperatures: 210°F for hot water
- 353°F for steam. This valve operates at 120V AC with a coil insulation class H, using a 60 Hz frequency, and includes the coil and seals necessary for installation.
Key Features:
- - Valve Design: Pilot operated, diaphragm type
- - Valve Positions: 2-position, normally closed
- - Nominal Pipe Size: 2 in with NPTF inlet and outlet connection types
- - Orifice Diameter: 1-3/4 in
- - Body Material: Brass with PTFE seal material
- - Operating Pressure Differential: 5 to 150 psi for hot water
- 5 to 125 psi for steam
- - Temperature Ratings: Ambient 14 to 140°F
- maximum fluid temperatures: 210°F for hot water
- 353°F for steam
- - Electrical: 120V AC, 60 Hz, 10.1 W wattage, coil enclosure watertight without junction box, electrical connections via 1/2 in conduit with 18 in leads
- - Dimensions: Overall height 7-1/2 in, length 5-1/16 in, width 4-23/32 in
- - Standards: CSA and UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.60
- Package Width: 7.60
- Package Height: 6.10
- Package Weight: 11.60
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
