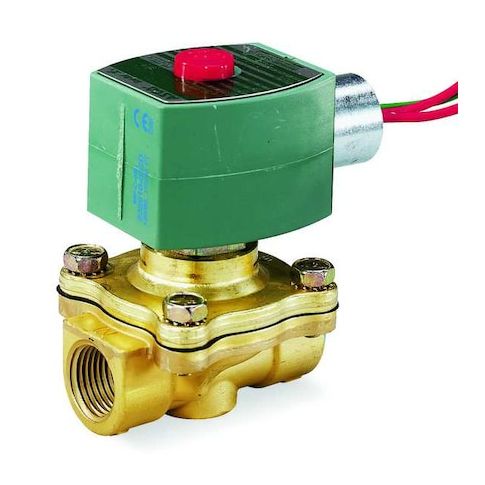

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 120V AC, High Flow, Brass MPN:8210G002V
Free Shipping
In Stock
The ASCO 8210G002V is a high-performance solenoid valve designed for demanding applications. Ideal for controlling air, inert gases, light oil, and water flow, this 2-way, 2-position valve features a brass body and includes both the coil and sealing components. With a high flow rate and ability to operate in a wide temperature range, it's perfect for use in industrial settings, such as manufacturing, oil and gas, and HVAC systems. Its durable design and IP66-rated enclosure make it suitable for both indoor and outdoor installation, ensuring reliable performance in harsh environments.
Top product features:
- The valve is a 2-Way/2-Position device with 2-Position operation.
- The valve features a high flow design.
- The valve is IP66-rated, making it suitable for both indoor and outdoor installation.
Top product applications:
- Air Compressor Systems
- Industrial Process Control
- Water Treatment Plants
The ASCO 8210G002V is a pilot-operated, normally closed solenoid valve designed to control the flow of air, inert gases, light oil, and water. It features a brass body and includes both the coil and sealing components. The valve operates within an ambient temperature range of 14°F to 140°F and is rated for fluid temperatures up to 180°F. With a nominal pipe size of 1/2 inch and NPTF inlet and outlet connections, it supports a maximum operating pressure differential of 200 psi for air/inert gas, 135 psi for light oil, and 150 psi for water.
Key Features:
- - Valve Design: 2-Way/2-Position with 2-Position operation
- - Orifice Diameter: 5/8 in
- - Valve Type: High Flow
- - Coil Enclosure: IP66 rated
- junction box not included
- - Electrical Connection: 1/2 in Conduit Hub
- - Coil Insulation Class: F
- - Voltage: 120V AC
- - Wattage: 6.1 W
- - Response Time: 1 sec
- - Seal Material: FKM
- - IP66-rated enclosure suitable for indoor and outdoor installation
- - Mounting Orientation: Vertical
- - IP Rating: 66
- - Overall Dimensions: Length 3 in, Height 3-15/16 in, Width 2-5/16 in
- - Center Line Pipe Size: 2-13/16 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.70
- Package Width: 3.40
- Package Height: 4.10
- Package Weight: 1.85
