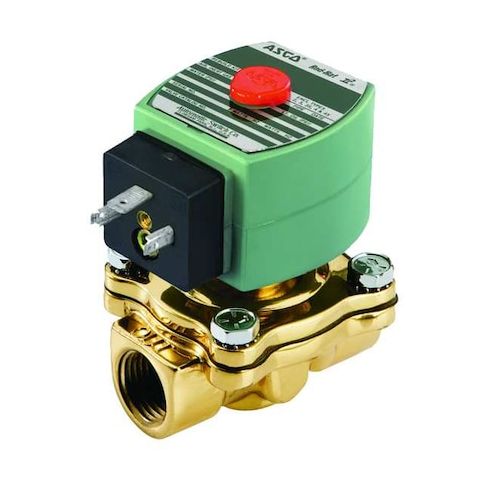

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/4 in Pipe Size, 120V AC, High Flow, Brass MPN:SC8210G009
The ASCO SC8210G009 is a reliable and efficient 2-way/2-position solenoid valve designed for a wide range of applications, including controlling the flow of air, inert gas, light oil, and water. Its high flow capacity and fast response time of 1 second make it ideal for automated systems that require precise control. Constructed with a durable brass body and housed in a watertight enclosure, this valve can withstand various environmental conditions and is suitable for both indoor and outdoor use. Its versatility and reliability make it a great choice for industries such as manufacturing, oil and gas, and water treatment.
Top product features:
- Pilot-operated design
- Normally closed configuration
- High flow capacity
Top product applications:
- Air and Inert Gas Control Systems
- Light Oil Flow Control Systems
- Water Treatment and Distribution Systems
The ASCO SC8210G009 is a pilot-operated, 2-way/2-position solenoid valve designed for controlling the flow of air, inert gas, light oil, and water. It features a normally closed configuration and is constructed with a brass body. Operating temperature range: ambient 14°F to 140°F
- fluid temperature up to 180°F. Operating differential pressure: 5 to 125 psi (Air/Inert Gas, Light Oil, Water), providing automated flow control with a response time of 1 second. It includes a coil and seal, housed in a watertight enclosure suitable for both indoor and outdoor use, and its vertical mounting orientation allows for installation flexibility.
Key Features:
- - Flow capacity: not specified
- pilot-operated design
- - Body Material: Brass construction
- - Orifice Diameter: 3/4 in
- - Nominal Pipe Size: 3/4 in with NPT thread type for inlet and outlet connections (NPTF)
- - Operating Pressure Differential: 5 to 125 psi for Air/Inert Gas, Light Oil, and Water
- - Includes: Coil and seal with coil insulation class F, 6.1 W wattage at 120V AC
- - Electrical Connections: 1/2 in Conduit Hub
- - Enclosure: Watertight coil enclosure with IP66 rating and NEMA ratings of 1, 2, 3, 3S, 4, 4X
- - Environmental Rating: Indoor, Outdoor
- - Response Time: 1 sec
- - Mounting Orientation: Vertical
- - Dimensions: Overall height 3-11/16 in, length 2-13/16 in, width 2-5/16 in
- - Standards: UL Listed
- - Suitable Media: Air, Inert Gas, Light Oil, Water
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.30
- Package Width: 3.00
- Package Height: 5.00
- Package Weight: 1.95
