Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 120V AC, High Temperature MPN:8222G066
Free Shipping
In Stock
This high-temperature solenoid valve is designed for automated flow control in hot water and steam systems, providing precise control and reliability in demanding applications. Suitable for use in washdown environments, the valve operates with a 120V AC power supply and features a brass body with PTFE seal, ensuring durability and resistance to corrosion. Ideal for use in industrial settings, such as breweries, food processing plants, and power generation facilities, this valve provides reliable operation up to 324°F and 80 psi differential, making it an essential component for systems requiring precise temperature control and automation.
Top product features:
- Pilot-operated design provides automated flow control for hot water and steam systems.
- Operates with a 120V AC power supply.
- Rated for hot water and steam service up to 324°F and 80 psi differential.
Top product applications:
- Automated Flow Control for Hot Water Systems
- Steam Distribution Systems in Industrial Settings
- High-Temperature Fluid Control in Laboratory Equipment

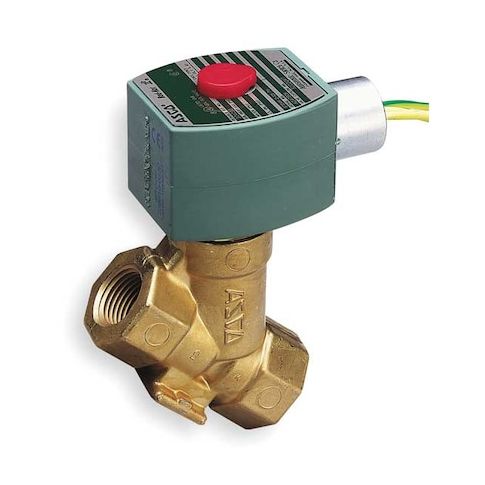

The ASCO 8222G066 is a pilot-operated, high-temperature solenoid valve designed to provide automated flow control for hot water and steam systems. This normally closed, 2-way/2-position valve operates with a 120V AC power supply and includes the coil and seal required for installation. The valve is rated for hot water and steam service up to 324°F and 80 psi differential. The valve features NPTF inlet and outlet connections with a nominal pipe size of 1/2 inch.
Key Features:
- - Valve Design: 2-Way/2-Position, Normally Closed
- - Operation Type: Pilot Operated
- - Materials: Brass body with PTFE seal
- - Orifice Diameter: 3/8 in
- - Maximum Operating Pressure Differential: 80 psi for steam and water
- - Fluid Compatibility: Hot water and steam
- - Maximum Fluid Temperature: 324°F steam
- - Electrical: 120V AC, 6.1 W coil wattage, coil included
- - Coil Enclosure: Watertight without junction box
- - Electrical Connections: 1/2 in conduit with 18 in leads
- - NEMA Enclosure Ratings: 1, 2, 3, 3S, 4, 4X
- suitable for washdown environments
- - Ambient Temperature Range: 14°F to 140°F
- - Dimensions: Overall length 2-9/32 in, width 1-11/16 in, height 4-3/16 in
- - Includes Seal: Yes
- - NEMA Enclosure Ratings: 1, 2, 3, 3S, 4, 4X
- - Standards: UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.20
- Package Width: 3.20
- Package Height: 5.10
- Package Weight: 1.40
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
