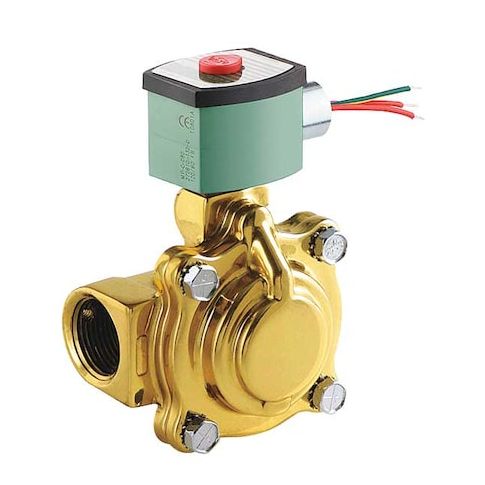

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1-1/2 in Pipe Size, 24V AC, High Flow, Brass MPN:8210G022
The ASCO 8210G022 Solenoid Valve is a reliable and efficient solution for a wide range of applications, including industrial processes, HVAC systems, and water treatment facilities. This 2-way, 2-position valve features a normally closed configuration and is designed for high flow rates, making it ideal for applications requiring fast and precise control of fluids. With its ability to operate in both indoor and outdoor environments, this valve is suitable for use in various settings, including manufacturing facilities, laboratories, and commercial buildings, providing a safe and reliable flow control solution.
Top product features:
- The ASCO 8210G022 Solenoid Valve is a pilot-operated valve with media compatibility for Air, Inert Gas, Light Oil, and Water.
- The valve has a normally closed configuration, which means it closes automatically when the electrical power is turned off.
- The valve features a high flow rate with an orifice diameter of 1-1/4 in and a flow coefficient (Cv) of 22.5, allowing for efficient fluid transfer.
Top product applications:
- Water Treatment Systems
- Air Compressor Systems
- Gas Distribution Systems
The ASCO 8210G022 Solenoid Valve is a 2-Way, 2-Position pilot-operated valve with media compatibility: Air, Inert Gas, Light Oil, Water. It features a normally closed configuration. The valve includes the coil and seals required for operation. Mounting Orientation: Vertical
- Environmental Rating: Indoor, Outdoor.
Key Features:
- - Valve Design: 2-Way/2-Position, Pilot Operated
- - Valve Starting Configuration: Normally Closed
- - Media compatibility: Air, Inert Gas, Light Oil, Water
- - Operating Pressure Differential: Minimum 5 psi
- Maximum 150 psi Air/Inert Gas and Water, 100 psi Light Oil
- - Fluid Temperature Maximum: 180°F
- - Ambient Operating Temperature Range: 14°F to 140°F
- - Electrical: 24V AC voltage, 6.1 W wattage, coil insulation class F, 50/60 Hz frequency
- - Coil enclosure: Watertight
- Junction box: Not included
- - Valve Type: High Flow with an orifice diameter of 1-1/4 in and a flow coefficient (Cv) of 22.5
- - Connections: Inlet and Outlet NPTF threaded ports, nominal pipe size 1-1/2 in, thread type NPT
- - Dimensions: 5-5/8 in height, 4 in length, 3-9/16 in width, center line pipe spacing 4-3/16 in
- - Seal Material: NBR (Buna-N)
- - Mounting Orientation: Vertical
- - Environmental Rating: Indoor, Outdoor
- NEMA Enclosure Ratings: 1, 2, 3, 3S, 4, 4X
- IP Rating: 66
- - Response Time: 1 second
- - Certifications: UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.50
- Package Width: 7.50
- Package Height: 6.00
- Package Weight: 6.10
