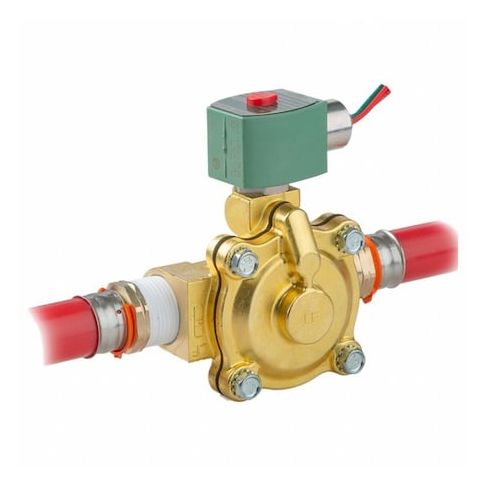

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/4 in Pipe Size, 220V AC, 240V AC, High Flow MPN:K210G009LFXC 240/60, 220/50

• The ASCO K210G009LFXC solenoid valve is an electromechanical, pilot-operated valve designed to control the flow of liquids and gases by using an energized coil to actuate a plunger. It features a normally closed, 2-position configuration and a 3/4 inch nominal pipe size with a matching orifice diameter. The valve body is constructed from brass and incorporates seals made of NBR and PTFE. This model includes the coil and sealing components with a coil enclosure rated to prevent water ingress (no IP rating specified) and an insulation class F rating. It supports alternating current operation at 220V and 240V across both 50 Hz and 60 Hz frequencies.

  Key Features:

  • - Valve Type: Pilot-operated
  • flow capacity within manufacturer-specified range
  • - Valve Ways: 2-Way
  • Valve Positions: 2-Position
  • Starting Configuration: Normally Closed
  • - Nominal Pipe Size and Orifice Diameter: 3/4 in
  • - Body Material: Brass
  • Seal Material: NBR, PTFE
  • - Operating Pressure Differential Maximum: 350 psi for Air/Inert Gas
  • 100 psi for Water and Hot Water
  • - Operating Pressure Differential Minimum: 5 psi for Water
  • - Ambient Temperature Range: 32°F to 125°F
  • Maximum Fluid Temperature: 180°F
  • - Includes Coil and Seal Components
  • - Coil Enclosure: Rated to prevent water ingress (no IP rating specified)
  • Coil Insulation Class: F
  • - Voltage: 220V AC, 240V AC
  • Frequency: 50 Hz, 60 Hz
  • - Environmental compatibility: Indoor and outdoor use
  • corrosion resistance and hazardous-environment suitability not specified
  • - Application Suitability: Air Compressors, Car Wash Equipment, Industrial Water Control, Laundry Equipment, Pumps
