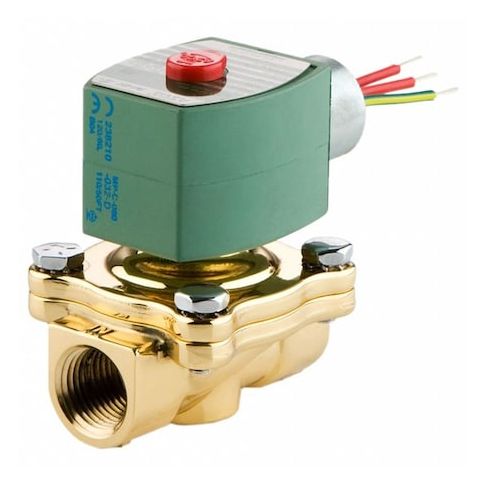

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1-1/2 in Pipe Size, 110V AC, 120V AC, High Flow MPN:8210G022LF 120/60, 110/50
Free Shipping
In Stock
The ASCO 8210G022LF is a high-performance solenoid valve designed for controlling the flow of air, inert gases, light oil, and water in a variety of industrial applications. With its Cv of 22.5 and 1-1/4 inch orifice diameter, this valve is ideal for systems requiring high flow rates. Its pilot-operated, normally closed design and 1-second response time ensure reliable control and efficient operation. Suitable for use in both indoor and outdoor environments, this valve is perfect for applications in HVAC, chemical processing, and water treatment, offering a reliable and efficient solution for controlling fluid flow.
Top product features:
- Pilot-operated design allows for high flow rates and fast response times.
- Normally closed configuration ensures that fluid flow is shut off when the solenoid is de-energized.
- Brass body material provides durability and resistance to corrosion in various fluid types.
Top product applications:
- Air compressing systems
- Inert gas systems
- Light oil pumping systems
The ASCO 8210G022LF is a pilot-operated, normally closed solenoid valve designed for controlling the flow of air, inert gases, light oil, and water. It features a Cv: 22.5 with a 1-1/4 inch orifice diameter and 1-1/2 inch nominal pipe size, intended for use in systems handling air, inert gases, light oil, and water. The valve includes the coil and seal, with a coil enclosure rated for indoor and outdoor use and a response time of 1 second.
Key Features:
- - Body Material: Brass
- - Cv: 22.5
- - Valve Ways: 2-Way
- - Valve Starting Configuration: Normally Closed
- - Operating Voltage: 110V AC, 120V AC
- - Frequency: 50 Hz, 60 Hz
- - Wattage: 6.1 W
- - Coil Insulation Class: F
- - Electrical Connections: 1/2 in Conduit Hub
- - Coil Enclosure: coil enclosure rated for indoor and outdoor use
- - Inlet/Outlet Connection Type: NPTF with NPT thread type
- - Mounting Orientation: Vertical
- - Maximum Ambient Temperature: 140°F
- Minimum: 14°F
- - Maximum Fluid Temperature: 180°F
- - Operating Pressure Differential (Max/Min): Air/Inert Gas 350 psi/5 psi
- Light Oil 100 psi/5 psi
- Water 150 psi/5 psi
- - Coefficient of Volume (Cv): 22.5
- - Seal Material: NBR
- - Standards: UL Listed
- - Environmental Rating: Indoor, Outdoor
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.40
- Package Width: 7.60
- Package Height: 6.10
- Package Weight: 6.70
