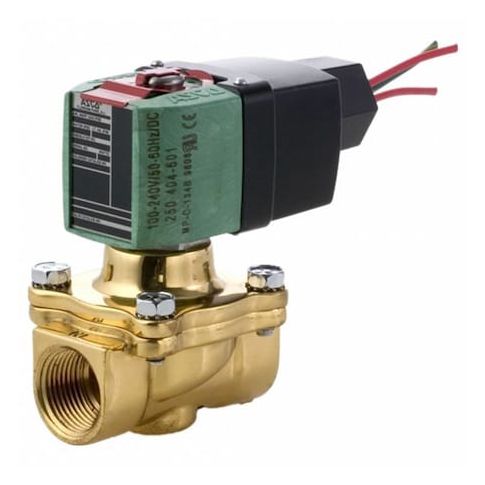

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/4 in Pipe Size, 24V to 120V AC/DC, High Flow MPN:8210P088 24-120

• The ASCO 8210P088 24-120 is a pilot-operated, normally closed solenoid valve designed for controlling the flow of gases and liquids. It features a stainless steel body and includes the coil necessary for operation. Intended for use in systems handling media within the Media Compatibility specification (Aggressive Gases, Aggressive Liquids, Air, Ammonia, Cryogenic Fluids, Fuel Oil, Hot Water, Inert Gases, Light Oil, Liquid Propane Gas, Natural Gas, Oxygen, Steam, Water).

  Key Features:

  • - Valve Type: High Flow, Pilot Operated
  • - Valve Positions: 2-Position
  • Starting Configuration: Normally Closed
  • - Body Material: Stainless Steel
  • Seal Material: NBR
  • - Orifice Diameter: 5/8 in
  • - Operating Pressure Differential: 0 to 350 psi for Air/Inert Gas
  • 0 to 125 psi for Light Oil
  • 0 to 150 psi for Water
  • - Fluid Temperature Maximum: 180°F
  • - Ambient Temperature Range: 14°F to 140°F
  • - Media Compatibility: Aggressive Gases, Aggressive Liquids, Air, Ammonia, Cryogenic Fluids, Fuel Oil, Hot Water, Inert Gases, Light Oil, Liquid Propane Gas, Natural Gas, Oxygen, Steam, Water
  • - Electrical Characteristics: 24V to 120V AC/DC voltage range
  • 60 Hz frequency
  • Wattage 1.5 W
  • Electrical Connections via 1/2 in Conduit Hub
  • - Coil Enclosure: Watertight
  • Indoor/Outdoor use per enclosure design
  • corrosive/hazardous environment suitability should be verified against applicable standards
  • - Mounting Orientation: Vertical
  • - Response Time: 1 second
  • - Thread Type: NPT
  • - Certification: UL Listed
