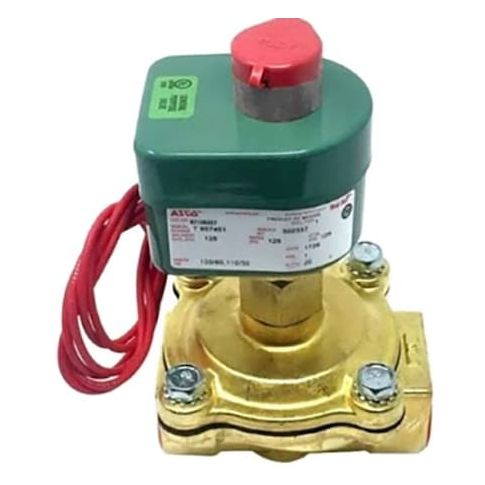

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/8 in Pipe Size, 120V AC, High Flow, Brass MPN:8210B021
Free Shipping
In Stock
The ASCO 8210B021 is a reliable, high-flow solenoid valve designed for a wide range of applications, including industrial processes, HVAC systems, and water treatment facilities. With its normally closed starting configuration and 2-way/2-position operation, this valve efficiently controls the flow of air, inert gas, and water within a 5-125 psi operating differential pressure range. Its brass body and NBR seals ensure durability and resistance to corrosion, making it suitable for use in harsh environments. Ideal for applications requiring precise flow control and reliability, the ASCO 8210B021 is a valuable addition to any system.
Top product features:
- Pilot-operated design allows for high flow rates
- Normally closed starting configuration enables efficient control of fluid flow
- Watertight coil enclosure provides protection against environmental factors
Top product applications:
- Air Compressor System
- Industrial Process Control
- Water Treatment Plant
The ASCO 8210B021 is a pilot-operated, 2-way/2-position solenoid valve with a normally closed starting configuration. It features a brass valve body and controls flow of air, inert gas, and water within an operating differential pressure range of 5 to 125 psi. The valve includes the required coil and sealing components, and operates on 120V AC
- 50/60 Hz. Mounting orientation: Vertical
- Environmental rating: Corrosive, Hazardous, Indoor, Outdoor. Orifice diameter: 5/16 inch
- Cv: 1.2.
Key Features:
- - Valve Design: 2-Way/2-Position, Pilot Operated, Normally Closed
- - Body Material: Brass
- - Nominal Pipe Size: 3/8 in, with NPT inlet and outlet connections
- - Operating pressure range: 5 to 125 psi for air, inert gas, and water
- - Media Compatibility: Air, Inert Gas, Water
- - Electrical Specifications: 120V AC, 6.5 W coil wattage, 1/2 in conduit hub electrical connections
- - Environmental rating: Corrosive
- Hazardous
- Indoor
- Outdoor
- - Temperature Ratings: Ambient 14 to 140°F
- fluid media up to 180°F
- - Physical Dimensions: Overall Length 1-11/16 in
- Width 2 in
- Height 2-15/16 in
- - Coil Enclosure: Watertight
- Coil insulation class: F
- - Response Time: 1 second
- - Seal Material: NBR
- - IP Rating: 66
- - Includes: Coil and seal
- - Standards: UL Listed
- - Mounting Orientation: Vertical
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.10
- Package Width: 2.40
- Package Height: 3.90
- Package Weight: 0.80
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
