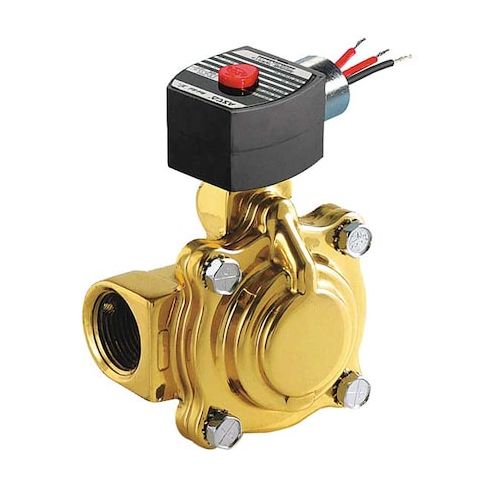

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1 in Pipe Size, 120V AC, Diaphragm, Piston MPN:EF8220G025
The ASCO EF8220G025 is a reliable and efficient pilot-operated solenoid valve designed for controlling hot water and steam flow in various industrial applications. Its diaphragm valve design with two flow paths and two actuator positions offers precise control and flexibility. This valve is ideal for use in HVAC systems, power plants, and other facilities requiring precise temperature control. Its brass construction and NPTF connections ensure durability and ease of installation. With its ability to withstand high temperatures and pressures, this valve provides reliable performance in demanding applications, making it a valuable addition to any industrial plumbing system.
Top product features:
- Pilot-operated design allows for precise control over fluid flow
- Diaphragm valve design provides a compact and durable construction
- Includes a coil with H-class insulation for reliable electrical operation
Top product applications:
- Industrial Process Control
- Steam Heating Systems
- Plumbing
The ASCO EF8220G025 is a pilot-operated, normally closed solenoid valve designed for controlling the flow of hot water and steam. It features a diaphragm valve design with two flow paths (2-way) and two actuator positions (2-position). The valve body is constructed of brass and includes the coil and necessary seals for operation. It supports a nominal pipe size of 1 inch with NPTF inlet and outlet connections. Rated for hot water up to 210°F and steam up to 353°F.
Key Features:
- - Valve Type and Design: Diaphragm, Piston
- Pilot Operated
- 2-Way, 2-Position
- - Body Material: Brass
- - Connections: 1 in nominal pipe size
- NPTF inlet and outlet connection types
- NPT thread type
- - Media Compatibility: Hot Water and Steam
- - Maximum Fluid Temperatures: 210°F for hot water, 353°F for steam
- - Operating Pressure Differential: 5 psi minimum and up to 150 psi (hot water), 125 psi (steam), 125 psi (air/inert gas), and 210 psi (light oil)
- - Coil: Includes coil with H class insulation
- explosion proof and watertight enclosure
- electrical connection by 1/2 in conduit with 18 in leads
- - Seal Material: EPDM, PTFE, TFE, P
- - Ambient Temperature Operating Range: 14°F minimum to 140°F maximum
- - Electrical: 120V AC supply voltage, 10.1 W power consumption, operating at 50 Hz and 60 Hz frequencies
- - Dimensions: Overall height 5-13/16 in, length 3-3/4 in, width 3-5/32 in
- - Includes seals and coil
- - Certifications: CSA, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.60
- Package Width: 5.20
- Package Height: 5.30
- Package Weight: 4.70
