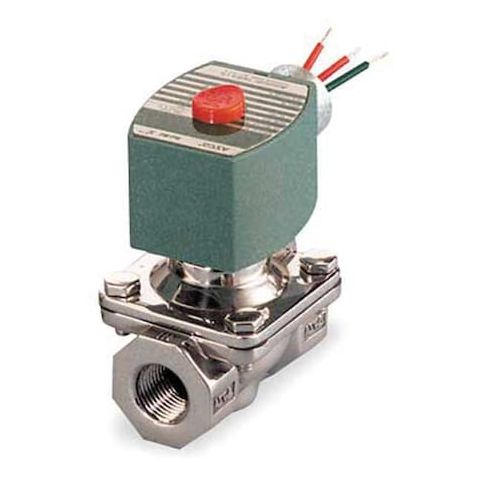

Solenoid Valve, 2-Way, 2-Position, Normally Open, 1/2 in Pipe Size, 120V AC, High Flow, NBR MPN:EF8210G030

The ASCO EF8210G030 is a pilot-operated, normally open 2-way/2-position solenoid valve designed for controlling air, inert gases, light oil, and water. It is constructed with a stainless steel body and features an NBR seal, supporting operation in ambient temperatures from 14°F to 140°F and fluid temperatures up to 180°F. It enables automated flow control via an electrically energized coil. Mounting orientation: Vertical.

Key Features:

• - Valve Type: High Flow, Pilot Operated
• - Valve Design: 2-Way/2-Position, Normally Open
• - Media: Air, Inert Gas, Light Oil, Water
• - Maximum Operating Pressure Differential: 150 psi Air/Inert Gas and Water, 100 psi Light Oil
• - Electrical: 120V AC, 10.1 W wattage, 50 Hz and 60 Hz frequency
• - Coil Enclosure: Explosion Proof, Watertight with Class F insulation
• - Electrical Connections: 1/2 in Conduit Hub
• - Inlet and Outlet Connection Type: NPTF with NPT threads
• - Orifice Diameter: 5/8 in
• - Dimensions: Overall Height 3-15/16 in, Length 3 in, Width 2-3/8 in
• - Response Time: 1 second
• - Includes Coil and Seal
• - Environmental Rating: Indoor, Outdoor
• - Mounting Orientation: Vertical
• - Standards: UL Listed
