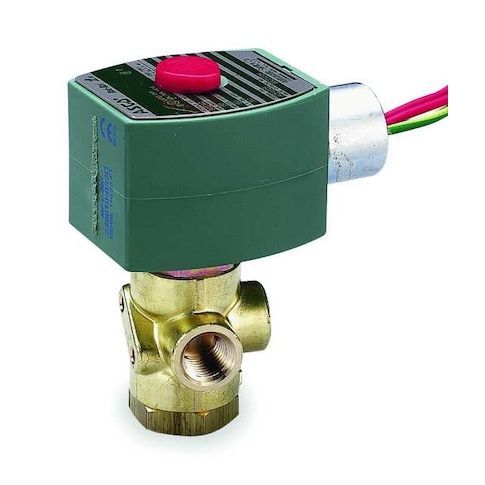

Solenoid Valve, 3-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 120V AC, Direct Mount, Brass MPN:8320G184
Free Shipping
In Stock
The ASCO 8320G184 is a reliable and versatile 3-way, 2-position solenoid valve designed for various applications. Suited for use in analytical and diagnostic equipment, dust collector systems, and life sciences, this valve offers a compact and efficient solution for controlling media flow. Its direct-acting design and brass valve body ensure a long-lasting and durable performance, while its IP66 enclosure rating and NEMA ratings ensure it can withstand harsh environments. With a Cv of 0.12 and a maximum fluid temperature of 200°F, this valve is ideal for applications requiring precise control and high reliability.
Top product features:
- Direct Mount design for easy installation
- 3-Way, 2-Position valve configuration for precise control of media flow
- Normally Closed design for automatic shutdown of media flow when power is removed
Top product applications:
- Analytical and diagnostic equipment
- Dust collector systems
- Life sciences
The ASCO 8320G184 is a direct-acting, normally closed solenoid valve with a 3-way, 2-position design. It features a brass valve body and media compatibility: air, inert gases, light oil, water. The valve includes a coil and seal, with the coil rated for Class F insulation and designed for 120V AC operation at 50 Hz and 60 Hz frequencies. It can be installed in either horizontal or vertical orientations and is rated for both indoor and outdoor environments with an IP66 enclosure rating and NEMA 1, 2, 3, 3S, 4, and 4X ratings. Intended for use in analytical and diagnostic equipment, dust collector systems, life sciences, metal stamping, and press room environments.
Key Features:
- - Body Material: Brass
- - Nominal Pipe Size: 1/4 in with BSPP threaded inlet and outlet connections
- - Valve Type: Direct Mount, Direct Acting
- - Valve Configuration: 3-Way, 2-Position, Normally Closed
- - Orifice Diameter: 3/32 in
- - Coefficient of Volume (Cv): 0.12
- - Maximum Fluid Temperature: 200°F
- - Operating Pressure Differential: 0 to 150 psi for air, inert gases, light oil, and water
- - Seal Material: NBR (Buna-N)
- - Electrical: 120V AC, 10.1 W wattage, 1/2 in conduit with 18 in leads
- - Coil Enclosure: Without Junction Box, Watertight
- - Mounting Orientation: Horizontal or Vertical
- - Dimensions: 4 in height, 3 in length, 3 in width
- - Environmental Rating: Indoor and Outdoor use
- - IP Rating: 66
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.60
- Package Width: 3.40
- Package Height: 4.00
- Package Weight: 1.55
