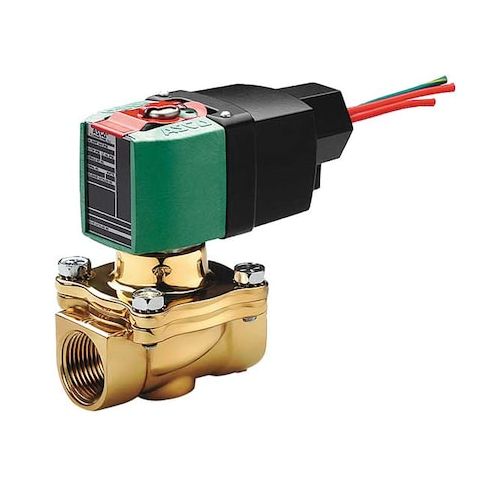

Solenoid Valve, 2-Way, 2-Position, Normally Open, 3/4 in Pipe Size, 100V to 240V AC/DC, High Flow MPN:8210P035
The ASCO 8210P035 pilot-operated solenoid valve is a reliable and efficient solution for controlling the flow of air, inert gases, light oil, and water in various applications. Suitable for use in corrosive, hazardous, indoor, and outdoor environments, this valve operates within a wide temperature range and is compatible with a variety of media. With its high flow rate and fast response time, it is ideal for use in industrial processes, such as air conditioning, heating, and process control systems, as well as in water treatment and irrigation systems. Its durable construction and easy installation make it a valuable asset for any facility.
Top product features:
- High flow rate allows for efficient control of air, inert gases, light oil, and water in various applications.
- Pilot-operated design enables precise control and fast response time of 1 second.
- Watertight coil enclosure and NEMA-rated enclosure provide protection against harsh environmental conditions, including corrosive and hazardous environments.
Top product applications:
- Air Compressor System
- Pneumatic Control Systems
- Industrial Process Control Systems
The ASCO 8210P035 is a pilot-operated solenoid valve designed for controlling the flow of air, inert gases, light oil, and water. Featuring a 2-way/2-position configuration with a normally open starting position, this valve operates within a temperature range of 14°F to 140°F ambient and maximum fluid temperature: 180°F. Body material: Brass
- Seal material: NBR
- Media compatibility: Air, Inert Gas, Light Oil, Water
- Environmental rating: Corrosive, Hazardous, Indoor, Outdoor. The valve includes the coil and sealing components necessary for installation and operates with a 100V to 240V AC/DC power supply at 60 Hz frequency.
Key Features:
- - Valve Design: 2-Way/2-Position, Normally Open
- - Operation Type: Pilot Operated
- - Body Material: Brass
- - Seal Material: NBR
- - Media Compatibility: Air, Inert Gas, Light Oil, Water
- - Maximum Fluid Temperature: 180°F
- - Maximum Ambient Temperature: 140°F
- Minimum Ambient Temperature: 14°F
- - Maximum Operating Pressure Differential: 350 psi (Air/Inert Gas), 150 psi (Water), 125 psi (Light Oil)
- - Electrical: 100V to 240V AC/DC, 60 Hz, 1.5 W Power Consumption
- - Coil Enclosure: Watertight, Without Junction Box
- - Electrical Connections: 1/2 in Conduit Hub
- - Mounting Orientation: Vertical
- - Orifice Diameter: 3/4 in
- Nominal Pipe Size: 3/4 in
- Center Line Pipe Size: 2 in
- - Dimensions: Overall Height 4-9/16 in, Overall Length 4 in, Overall Width 2-5/16 in
- - Response Time: 1 sec
- - Environmental Rating: Corrosive, Hazardous, Indoor, Outdoor
- - IP Rating: 66
- NEMA Enclosure Rating: 1, 2, 3, 3S, 4, 4X
- - Includes Coil: Yes
- Includes Seal: Yes
- - Thread Type: NPT (Inlet and Outlet)
- Connection Type: NPT
- - Standards: UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.60
- Package Width: 3.20
- Package Height: 8.40
- Package Weight: 2.63
