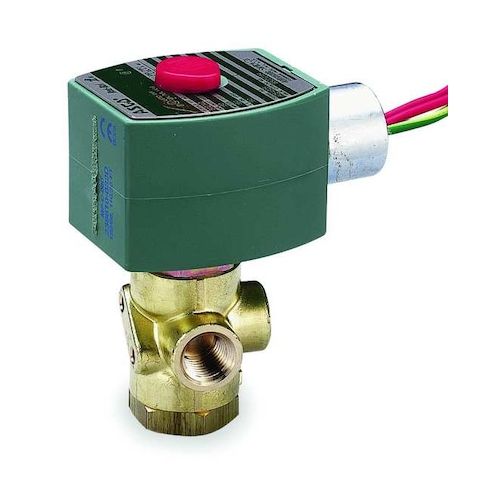

Solenoid Valve, 3-Way, 2-Position, Configurable, 1/4 in Pipe Size, 120V AC, Quick Exhaust, Brass MPN:EF8320G174
Free Shipping
In Stock
The ASCO EF8320G174 is a versatile 3-way, 2-position solenoid valve designed for controlling the flow of air, inert gases, light oil, and water in a variety of applications. Its brass body and NBR seal material ensure durability and reliability, while its quick exhaust feature allows for efficient operation. Suitable for use in both indoor and outdoor environments, this valve is ideal for applications in manufacturing, HVAC, and water treatment, among others. With its configurable starting configuration and explosion-proof enclosure, the ASCO EF8320G174 provides a reliable and efficient solution for controlling fluid flow in a range of industries and settings.
Top product features:
- Direct acting solenoid valve controls flow of air, inert gases, light oil, and water.
- Valve operates with a quick exhaust type, allowing for rapid release of fluid.
- Brass body construction provides structural integrity and resistance to corrosion.
Top product applications:
- Air Compressor Systems
- Industrial Process Control
- Medical Gas Systems
The ASCO EF8320G174 is a 3-way, 2-position direct acting solenoid valve that controls flow of air, inert gases, light oil, and water. Its brass body construction and NBR seal material provide the structural and sealing components, respectively. Environmental rating: indoor, outdoor. This valve operates at a nominal pipe size of 1/4 in with NPTF inlet and outlet connections and supports horizontal or vertical mounting orientations. The valve includes a coil with F class insulation housed within an explosion-proof, watertight enclosure, and features electrical connections via a 1/2 in conduit with 18 in leads. Starting configuration is configurable, exhaust type: quick exhaust.
Key Features:
- - Valve Design: 3-Way/2-Position with 2-Position actuator states
- - Body Material: Brass
- - Seal Material: NBR (Buna-N)
- - Coil: Included, with F class insulation in explosion-proof, watertight enclosure
- - Electrical Connections: 1/2 in conduit with 18 in leads
- - Voltage: 120V AC
- - Wattage: 17.1 W
- - Nominal Pipe Size: 1/4 in
- - Connection Type: NPTF inlet and outlet
- - Orifice Diameter: 3/32 in
- - Flow Coefficient (Cv): 0.12
- - Operating Pressure Differential: 0 to 100 psi for air, inert gas, light oil, and water
- - Fluid Temperature Maximum: 200°F
- - Mounting Orientation: Horizontal or Vertical
- - Overall Dimensions: Height 3-7/8 in, Length 3-1/8 in, Width 2-15/16 in
- - Environmental Rating: indoor, outdoor
- - Standards: ATEX, CSA, IIECEx, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 2.90
- Package Height: 4.50
- Package Weight: 1.70
