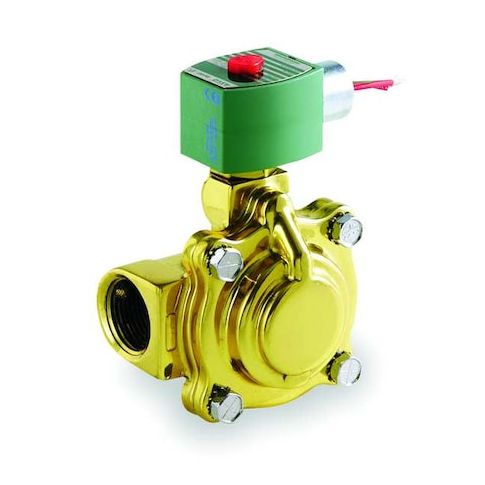

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1-1/4 in Pipe Size, 120V AC, Slow-Closing, NBR MPN:8221G009
The ASCO 8221G009 pilot-operated, slow-closing solenoid valve is designed for precise control of water and light oil flow in a variety of applications, including industrial processes, commercial facilities, and residential systems. Its normally closed 2-way, 2-position design and brass body with NBR seals ensure reliable operation in corrosive environments. This valve is ideal for use in automated systems, providing efficient flow control and minimizing wear on equipment. Its compact size and NEMA enclosure ratings make it suitable for a range of installations, from indoor to outdoor applications, and its CSA and UL Listed compliance ensures safety and reliability.
Top product features:
- 2-Way/2-Position valve design for controlling fluid flow
- Normally Closed configuration for automatic shutdown
- Slow-closing solenoid valve for smooth, controlled flow
Top product applications:
- Water Treatment Systems
- Automated Irrigation Systems
- Industrial Process Control Systems
The ASCO 8221G009 is a pilot-operated, slow-closing solenoid valve for controlling the flow of water and light oil. It features a normally closed 2-way, 2-position valve design with a brass body and NBR seals. This valve includes the coil and sealing components, providing operational control at 120V AC with a coil wattage of 6.1 W. It is rated for automated flow control in corrosive indoor or outdoor environments. The valve supports a maximum fluid temperature of 180°F and operates within a pressure range of 5 to 150 psi differential for water and hot water.
Key Features:
- - Valve Design: 2-Way/2-Position
- Normally Closed configuration
- - Body Material: Brass with NBR (Buna-N) seal material
- - Connection Type: Inlet and outlet with NPTF threads, 1-1/4 in nominal pipe size
- - Orifice Diameter: 1-1/8 in with a Cv flow coefficient of 3
- - Electrical: 120V AC supply, 6.1 W coil power, Class F coil insulation
- - Coil Enclosure: Watertight without junction box
- includes 1/2 in conduit with 18 in leads
- - Environmental rating limited to corrosive and hazardous conditions, indoors or outdoors
- - Operating Pressure Differential: 5 psi minimum to 150 psi maximum for water and hot water
- - Dimensions: Overall length 3-11/16 in, width 3-9/16 in, height 5-9/16 in
- - Standards: CSA and UL Listed compliance
- - NEMA Enclosure Ratings: 1, 2, 3, 3S, 4, 4X
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.60
- Package Width: 5.30
- Package Height: 5.30
- Package Weight: 5.15
