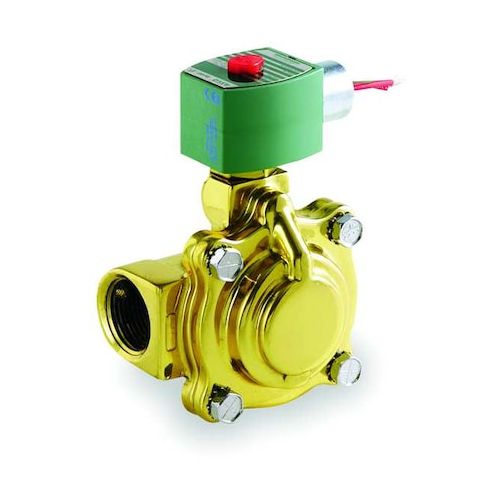

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1 in Pipe Size, 24V AC, High Flow, Brass, NBR MPN:8210G004
The ASCO 8210G004 solenoid valve is a reliable and efficient solution for managing fluids in various industrial applications. Suitable for use with air, inert gases, light oil, and water, this 2-way, 2-position valve features a brass body and NBR seals for durability and resistance to corrosion. Its high flow rate and fast response time make it ideal for flow control in processes requiring precise control. This valve is suitable for indoor and outdoor use, with IP66 ingress protection, and is UL Listed for added safety. Its compact design and easy installation make it a valuable addition to any industrial system.
Top product features:
- The valve is normally closed, meaning it will block fluid flow until an electrical signal is applied to the coil.
- The valve is designed for high flow rates, making it suitable for applications where a high volume of fluid is required.
- The valve operates within a wide temperature range, from 14°F to 180°F, allowing it to be used in a variety of environments.
Top product applications:
- Air Compressor System Control
- Water Treatment Plant Automation
- Industrial Process Control Systems
The ASCO 8210G004 solenoid valve is a 2-way, 2-position, normally closed valve designed for pilot-operated flow control. Constructed with a brass body and NBR seals, it manages fluids including air, inert gases, light oil, and water. It operates within ambient temperatures from 14°F to 140°F and handles fluid temperatures up to 180°F. It features vertical mounting orientation and includes a coil and sealing components for operation.
Key Features:
- - Valve Size: 1 inch nominal pipe size with 1 inch orifice diameter
- - Maximum Operating Pressure Differential: 150 psi for air/inert gas and water, 100 psi for light oil
- - Minimum Operating Pressure Differential: 5 psi for air/inert gas, light oil, and water
- - Coil Voltage and Power: 24V AC at 6.1 watts
- - Electrical Connection: 1/2 inch conduit hub
- - Coil Enclosure: Watertight
- electrical connection via 1/2 inch conduit hub
- - Coil Insulation Class: F
- - Environmental Rating: Indoor and outdoor use, with IP66 ingress protection
- - Valve Design: 2-Way/2-Position pilot-operated
- - Thread Type: NPT inlet and outlet with NPTF connection threads
- - Response Time: 1 second
- - Dimensions: 5-1/8 inches height, 3-3/4 inches length, and 3-1/4 inches width
- - Certifications: UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.60
- Package Width: 5.20
- Package Height: 5.40
- Package Weight: 4.35
