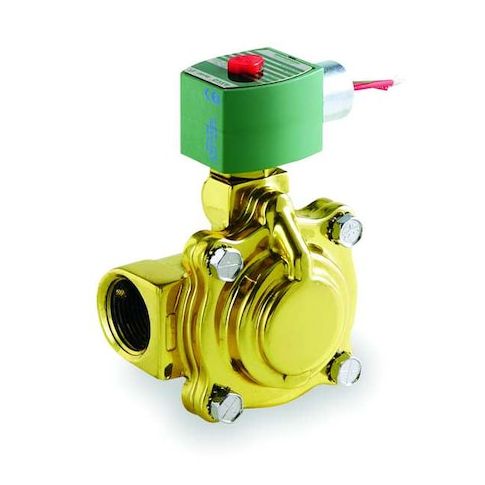

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1-1/4 in Pipe Size, 120V AC, High Flow, Brass MPN:8210G008

• The ASCO 8210G008 is a pilot operated, normally closed solenoid valve designed to control the flow of air, inert gas, light oil, and water. It features a brass valve body and includes the coil and seals necessary for operation. Nominal pipe size: 1-1/4 inches

• Valve type: 2-way, 2-position
• Operation: pilot operated
• Starting configuration: Normally Closed.

  Key Features:

  • - Valve Type: High Flow
  • - Valve Design: 2-Way/2-Position
  • - Operation Type: Pilot Operated
  • - Valve Starting Configuration: Normally Closed
  • - Media Compatibility: Air, Inert Gas, Light Oil, Water
  • - Operating Pressure Differential: 5 psi minimum
  • 150 psi max for air/inert gas and water
  • 100 psi max for light oil
  • - Coil Enclosure: Without Junction Box, Watertight
  • - Coil Insulation Class: F
  • - Electrical Connections: 1/2 in Conduit Hub
  • - Voltage: 120V AC
  • - Wattage: 6.1 W
  • - Ambient Temperature Range: 14 to 140 Degrees F
  • - Fluid Temperature Maximum: 180°F
  • - Orifice Diameter: 1-1/8 in
  • - Seal Material: NBR
  • - Body Material: Brass
  • - Mounting Orientation: Vertical
  • - Inlet and Outlet Connection Type: NPTF
  • - Center Line Pipe Distance: 4 in
  • - Overall Dimensions: Length 4 in, Width 3-9/16 in, Height 5-5/8 in
  • - Response Time: 1 sec
  • - Environmental Rating: Indoor, Outdoor
  • - IP Rating: 66
  • - NEMA Enclosure Ratings: 1, 2, 3, 3S, 4, 4X
  • - Includes: Coil and Seal
  • - Standards: UL Listed
