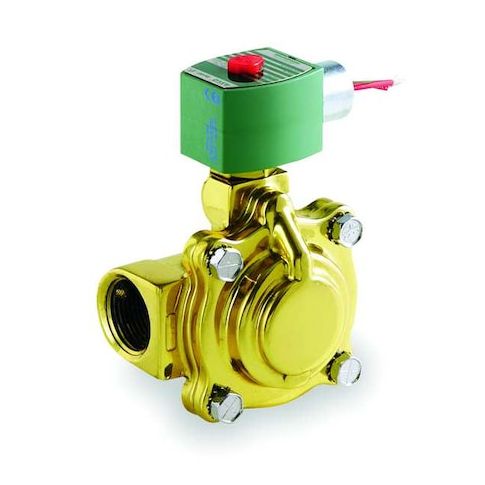

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1 in Pipe Size, 24V DC, High Flow, Brass, NBR MPN:8210G004
The ASCO 8210G004 solenoid valve is a reliable and efficient solution for controlling air, inert gas, light oil, and water flow in pneumatic and hydraulic systems. With its 2-way, 2-position flow-path configuration and normally closed valve starting position, this valve ensures precise control and minimizes downtime. Suitable for high-flow applications, it features a brass body and NBR seal material for durability and resistance to wear and tear. Ideal for use in industrial settings, such as manufacturing, oil and gas, and water treatment, this valve offers fast response times and operates in a wide range of temperatures and pressures, making it a versatile and valuable addition to any system.
Top product features:
- High Flow design for efficient fluid transfer
- Pilot-operated solenoid valve with a 2-way, 2-position flow-path configuration
- Normally closed valve starting position for secure fluid shut-off
Top product applications:
- Pneumatic systems for controlling the flow of air and inert gas
- Hydraulic systems for controlling the flow of light oil
- Industrial water treatment and distribution systems
The ASCO 8210G004 is a pilot-operated solenoid valve designed for controlling the flow of air, inert gas, light oil, and water in pneumatic and hydraulic systems. It features a 2-way, 2-position flow-path configuration with a normally closed valve starting position. The valve body is constructed from brass and is equipped with an included coil and sealing components. It operates with a nominal 1-inch pipe size and NPTF inlet and outlet connection types
- Mounting orientation: Vertical. UL Listed.
Key Features:
- - Valve Design: 2-Way/2-Position, Normally Closed configuration
- - Valve Type: High Flow, Pilot Operated
- - Body Material: Brass
- - Nominal Pipe Size: 1 in
- Orifice Diameter: 1 in
- - Connections: Inlet and Outlet NPTF threaded
- - Electrical: 24V DC voltage, 6.1 W coil wattage, 1/2 in conduit hub electrical connection
- - Coil enclosure: Without junction box
- IP66-rated watertight
- - IP66 rating
- suitable for indoor and outdoor use
- - Operating Pressure Differential: Minimum 5 psi, Maximum 125 psi for air/inert gas
- Maximum 100 psi for light oil
- Maximum 150 psi for water
- - Fluid Temperature: Maximum 180°F
- Ambient Temperature Range: 14°F to 140°F
- - Included Components: coil and seal material (NBR)
- - Dimensions: Overall Height 5-5/8 in, Overall Length 3-3/4 in, Overall Width 3-3/8 in
- - Response time: 1 second (typical)
- - Mounting orientation: Vertical
- - Standards: UL Listed
