Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 120V AC, High Temperature MPN:8222G047
Free Shipping
In Stock

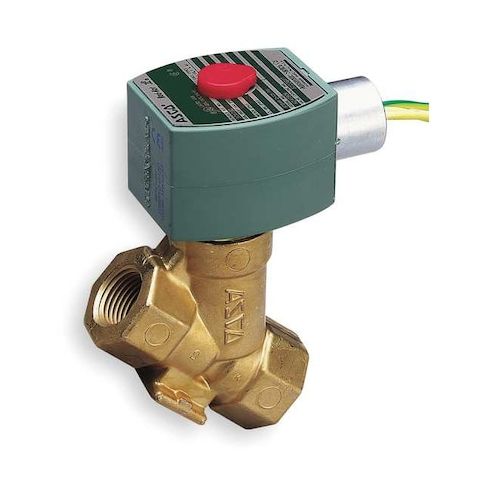

The ASCO 8222G047 is a reliable and efficient pilot-operated solenoid valve designed for controlling steam flow in various equipment such as autoclaves, commercial laundry, kitchen equipment, molding machines, and steam sterilizers. Its normally closed configuration ensures safe and controlled steam flow, while its high-temperature rating of up to 353°F makes it suitable for demanding applications. With its durable brass body and PTFE seals, this valve provides long-lasting performance and reliability. Its compact design and easy installation make it an ideal choice for a wide range of industries, including food processing, pharmaceutical, and manufacturing.
Top product features:
- The valve is pilot-operated, enabling it to remain closed until electrically energized.
- The valve features a diaphragm design with a normally closed configuration.
- The valve is rated for steam temperatures up to 353°F and differential pressure up to 135 psi.
Top product applications:
- Autoclaves
- Commercial laundry
- Kitchen equipment
The ASCO 8222G047 is a pilot-operated, 2-way, 2-position solenoid valve designed for controlling the flow of steam in various equipment such as autoclaves, commercial laundry, kitchen equipment, molding machines, and steam sterilizers. It features a diaphragm valve design with a normally closed configuration, enabling the valve to remain closed until electrically energized. The valve body is constructed of brass and incorporates PTFE seals, rated for steam temperatures up to 353°F and differential pressure up to 135 psi.
Key Features:
- - Nominal Pipe Size: 1/2 in with 1/2 in orifice diameter
- - Connection Types: NPTF inlet and outlet threaded ports
- - Operating Ambient Temperature Range: 32 to 125 Degrees F
- - Coil: Included, class H insulation, 120V AC, 50/60 Hz electrical frequency
- - Coil Enclosure: Watertight, without junction box
- - Electrical Connections: 1/2 in conduit with 18 in leads
- - Valve Body Style: Y-Shape
- - Dimensions: Overall height 4-13/16 in, length 2-3/4 in, width 1-15/16 in
- - Flow Coefficient (Cv): 3.6
- - Valve Type: High Temperature
- - Seal Material: PTFE
- - Standards: CSA, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.30
- Package Width: 3.10
- Package Height: 5.10
- Package Weight: 2.35
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
