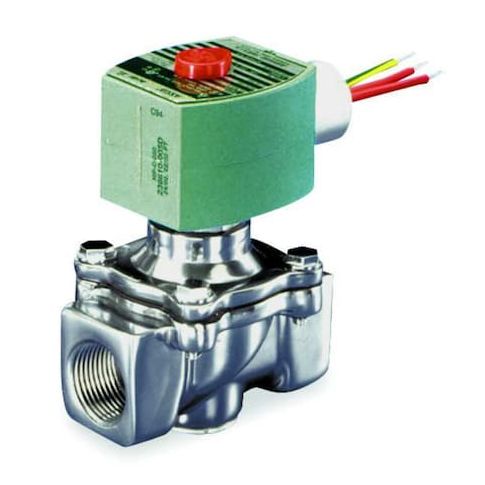

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/8 in Pipe Size, 120V AC, High Flow, Aluminum MPN:8215G010

• The ASCO 8215G010 is a 2-way, 2-position solenoid valve with a normally closed configuration, designed for controlling the flow of air, vacuum, and fuel gas. It is a direct-acting valve

• rated for operation with a differential pressure of 0 to 50 psi (air, water, inert gases). The aluminum body includes a coil for electrical actuation. The valve operates at 120V AC and is compatible with ambient temperatures of 32°F to 125°F, with a fluid temperature of up to 125°F. It features NPTF inlet and outlet ports: 3/8 in, and supports an operating pressure differential of 0 to 50 psi for air, water, and inert gases. The valve is suited for indoor and outdoor use
• IP65 rating for protection against dust and water ingress.

  Key Features:

  • - Valve Design: 2-Way/2-Position, Normally Closed
  • - Body Material: Aluminum
  • - Orifice Diameter: 3/4 in
  • - Nominal Pipe Size: 3/8 in
  • - Pressure Range: 0 to 50 psi for Air/Inert Gas and Water
  • - Valve Type: direct-acting valve
  • rated for operation with a differential pressure of 0 to 50 psi (air, water, inert gases)
  • - Electrical: 120V AC, 60 Hz, 10.1 W coil wattage with 18 in leads
  • - Environmental Rating: Indoor and outdoor use
  • IP65 enclosure
  • NEMA 1, 2, 3, 3S, 4, 4X
  • - Temperature Range: Ambient 32°F to 125°F
  • Fluid max 125°F
  • - Includes: Coil and seal (NBR material)
  • - Response Time: 120 milliseconds
  • - Connections: NPTF threaded inlet and outlet
  • - Certifications: CSA, FM, UL
