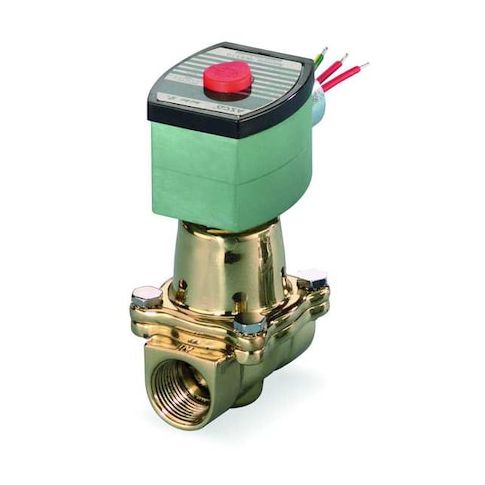

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/8 in Pipe Size, 120V AC, Diaphragm, Brass MPN:8210G093HW

• The ASCO 8210G093HW is a 2-way, 2-position solenoid valve designed for controlling the flow of air, hot water, light oil, and other fluids in various industrial systems such as air compressors, car wash equipment, and pumps. It operates with a normally closed diaphragm valve design, using a pilot-operated actuation method. This valve is equipped with a coil and sealing components. Response time: 1 second. It features a nominal pipe size of 3/8 inch with inlet and outlet connections of NPTF thread type and is intended for vertical mounting orientation.

  Key Features:

  • - Body Material: Brass
  • - Valve Design: 2-Way/2-Position, Valve Positions: 2-Position
  • - Operation Type: Pilot Operated
  • - Valve Starting Configuration: Normally Closed
  • - Valve Type: Diaphragm
  • - Operating Pressure Differential Maximum: 350 psi (Air/Inert Gas), 210 psi (Light Oil), 100 psi (Hot Water)
  • - Operating Pressure Differential Minimum: 0 psi (Hot Water)
  • - Maximum Fluid Temperature: 210°F (Hot Water)
  • - Ambient Temperature Range: 14°F minimum to 140°F maximum
  • - Coil Enclosure: Without Junction Box, Watertight
  • Coil Insulation Class: F
  • - Electrical Connections: 1/2 in Conduit Hub
  • - Includes: Coil and Seal
  • - Orifice Diameter: 5/8 in
  • - Dimensions: Overall Height 3-27/32 in
  • Overall Length 2-3/4 in
  • Overall Width 2-1/4 in
  • - Environmental Rating: Indoor, Outdoor
  • - Response Time: 1 sec
  • - Voltage: 120V AC
  • - Wattage: 10.1 W
  • - Thread Type: NPT (Inlet and Outlet)
  • - Standards: UL Listed
