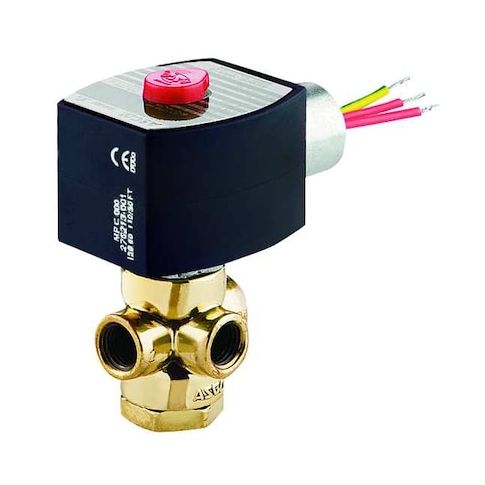

Solenoid Valve, 3-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 12V DC, Direct Mount, Brass MPN:8320G182
Solenoid Valve, 3-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 12V DC, Direct Mount, Brass
The Asco Solenoid Valve is a reliable and versatile solution for controlling fluid flow in various applications. Suitable for use with air, inert gas, light oil, and water, this 3-way, 2-position valve is perfect for pneumatics, hydraulics, and fluid handling systems. Its direct-acting design and normally closed operation ensure precise control and efficient operation. With a compact design and IP66 environmental rating, this valve can be used in a range of settings, from industrial manufacturing to outdoor installations. Its 12V DC power and NEMA-rated enclosure make it easy to integrate into existing systems.
Top product features:
- Direct-acting, normally closed solenoid valve
- 3-way, 2-position configuration
- Fluid compatibility with air, inert gas, light oil, and water
Top product applications:
- Air Compressor Systems
- Automotive Fuel Systems
- Water Treatment Plants
Direct-acting, normally closed solenoid valve
- fluid compatibility: air, inert gas, light oil, and water
- maximum media temperature: 200°F
- 3-way, 2-position configuration
- nominal pipe size: 1/4 in (NPTF inlet/outlet). Nominal voltage: 12 V DC
- coil and seal provided per specification.
Key Features:
- - Valve Type: Direct Mount, Direct Acting
- - Position and Operation: 3-Way, 2-Position, Normally Closed
- - Materials: Brass body, NBR seal material
- - Electrical: 12V DC, 17.1 W wattage, 1/2 in conduit with 18 in leads
- - Fluid Compatibility: Air, Inert Gas, Light Oil, Water
- - Pressure Ratings: Maximum differential 210 psi Air/Inert Gas, 225 psi Light Oil and Water
- minimum differential 0 psi for all
- - Orifice Diameter: 1/16 in
- - Sizes and Dimensions: Nominal pipe size 1/4 in
- center line pipe center size 2-3/4 in
- overall dimensions approximately 3 in length, 2 in width, 3-3/4 in height
- - Environmental ratings: IP66
- enclosure classes: NEMA 1, 2, 3, 3S, 4, 4X
- operation indoors and outdoors defined by these ratings
- - Coil Insulation Class: F
- - Mounting Orientation: Horizontal or Vertical
- - Includes: Coil and seal components
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.60
- Package Width: 3.40
- Package Height: 4.20
- Package Weight: 1.60
Product info last updated on January 15, 2026 10:32pm UTC
Category: Pipes, Valves and Fittings
