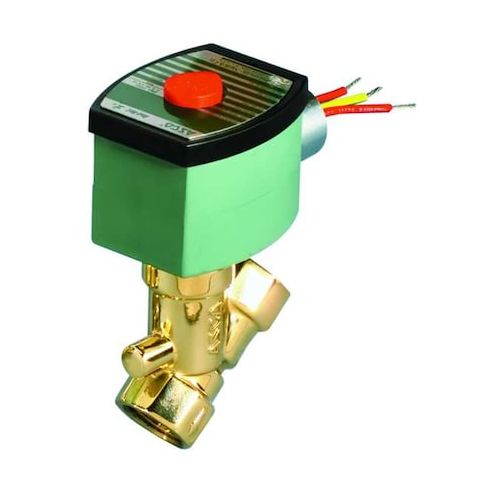

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/8 in Pipe Size, 120V AC, High Flow, Brass MPN:8030G010
The ASCO 8030G010 2-way, 2-position solenoid valve is a reliable and efficient solution for controlling air, inert gases, and water flow in various applications. Its high flow rate and brass valve body ensure smooth operation, while the NBR seal material provides long-lasting durability. Suitable for use in industrial settings, laboratories, and medical facilities, this valve can be mounted horizontally or vertically and operates at 120V AC. Its compact design and IP66-rated enclosure make it ideal for use in harsh environments, and its CSA and UL Listed certification ensures compliance with industry standards.
Top product features:
- The valve features a brass valve body.
- The valve includes a coil with Class F insulation and an IP66-rated enclosure.
- The valve operates at 120V AC with a power consumption of 6.1 W.
Top product applications:
- Air Compressor Systems
- Water Treatment Plants
- Industrial Process Control Systems
The ASCO 8030G010 is a 2-way, 2-position direct acting solenoid valve with a normally closed configuration. It features a brass valve body and NBR seal material, designed to control the flow of air, inert gases, and water with a maximum fluid temperature of 180°F. This valve includes a coil and seals and can be mounted in horizontal or vertical orientations. The coil is insulated to Class F standards, enclosed in an IP66-rated enclosure
- no integrated junction box. It connects via 1/2 inch conduit with 18 inch leads. The valve operates at 120V AC and 50/60 Hz frequency with a power consumption of 6.1 W.
Key Features:
- - Valve Design: 2-Way/2-Position, Direct Acting, Normally Closed
- - Body Material: Brass
- Seal Material: NBR
- - Media Compatibility: Air, Inert Gas, Water
- Max Fluid Temperature: 180°F
- - Nominal Pipe Size: 3/8 in
- Orifice Diameter: 3/8 in
- - Operating Pressure Differential: Minimum 7 psi Air/Inert Gas, 0 psi Water
- Maximum 7 psi Air/Inert Gas, 5 psi Water
- - Coil: Included, Class F insulation, IP66-rated enclosure
- no integrated junction box
- - Electrical Connections: 1/2 in Conduit with 18 in Leads
- Voltage: 120V AC
- Frequency: 50 Hz, 60 Hz
- Wattage: 6.1 W
- - Mounting Orientation: Horizontal or Vertical
- - Inlet/Outlet Connection: NPTF thread type
- - Dimensions: Overall Length 2 in
- Width 1-11/16 in
- Height 3-7/8 in
- - Environment: Indoor/outdoor use
- IP66-rated enclosure
- Ingress Protection rating: IP66
- - Certified to Standards: CSA, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.70
- Package Width: 3.50
- Package Height: 4.10
- Package Weight: 1.19
