Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1 in Pipe Size, 120V AC, Diaphragm, Piston MPN:8220G411

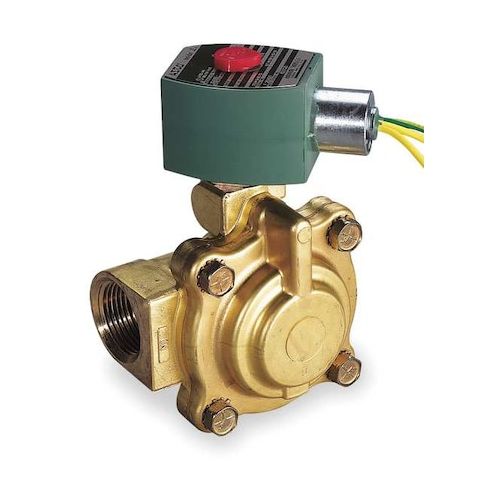

The ASCO 8220G411 is a pilot-operated solenoid valve designed for controlling the flow of hot water and steam. It features a diaphragm valve design with a normally closed starting configuration and two flow paths (2-way). For automated and remote control of steam and hot water flow. It operates within ambient temperatures ranging from 14°F to 140°F and handles fluid temperatures up to 210°F for hot water and 353°F for steam.

Key Features:

• - Valve Design: Diaphragm with 2-Way, 2-Position operation
• - Operation Type: Pilot Operated
• - Starting Configuration: Normally Closed
• - Body Material: Brass construction
• - Seal Material: EPDM and PTFE
• - Nominal Pipe Size: 1 in with NPT threaded inlet and outlet connections (NPTF)
• - Orifice Diameter: 1 in
• - Flow Coefficient (Cv): 11.5
• - Maximum Operating Pressure Differential: 150 psi (Hot Water), 125 psi (Steam), 210 psi (Light Oil), 150 psi (Air/Inert Gas)
• - Minimum Operating Pressure Differential: 5 psi (Hot Water, Steam)
• - Electrical: 120V AC, 10.1 W wattage, coil included with Class H insulation
• - Electrical Connections: 1/2 in conduit with 18 in leads
• - Coil Enclosure: Watertight, without junction box
• - Environmental Rating: Indoor, Outdoor, Hazardous, Washdown
• - Dimensions: Overall length 3-3/4 in, height 5-3/16 in, width 3-9/32 in
• - Includes Seals
• - Standards: CSA and UL Listed
