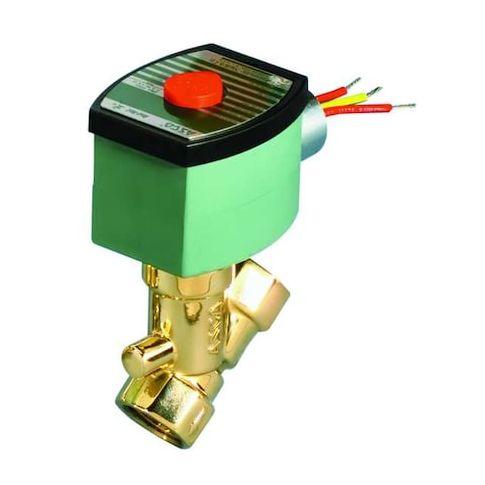

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 120V AC, Compact, Brass, NBR MPN:8030G069
Free Shipping
In Stock
The ASCO 8030G069 is a reliable and compact solenoid valve designed for controlling commercial and industrial gas burners. Its normally closed, 2-way/2-position design ensures efficient operation, while its brass body and NBR seal provide durability and resistance to harsh environments. With a flow coefficient of 2.8 and a maximum operating pressure differential of 8 psi, this valve is ideal for a variety of applications, including heating, ventilation, and air conditioning systems. Its compact size and high-temperature enclosure make it suitable for indoor and outdoor use, making it a valuable addition to any industrial or commercial setting.
Top product features:
- The valve is normally closed, allowing it to shut off fluid flow when not energized.
- The valve has a 2-way/2-position design, enabling it to control fluid flow in two different states.
- The valve uses a brass body and NBR seals, providing a durable and fluid-resistant construction.
Top product applications:
- Control of commercial and industrial gas burners
- HVAC systems for heating and cooling applications
- Water treatment and distribution systems for water supply and filtration
The ASCO 8030G069 is a normally closed, 2-way/2-position solenoid valve designed for control of commercial and industrial gas burners. It operates with a 120V AC supply at 60 Hz frequency and includes the coil required for actuation. Body material: Brass
- Mounting orientation: Horizontal or Vertical. Environmental rating: Indoor, Outdoor
- Ambient temperature range: 32°F to 125°F
- Maximum fluid temperature: 125°F. It has a maximum operating pressure differential of 8 psi for air, inert gases, and water, and a flow coefficient (Cv) of 2.8. The valve uses NPTF threaded inlet and outlet connections with a nominal pipe size of 1/2 inch.
Key Features:
- - Valve Design: 2-Way/2-Position, Normally Closed
- - Body Material: Brass
- - Coil: Included
- 10.1 W wattage
- Class F insulation
- high temperature enclosure without junction box
- - Electrical Connections: DIN
- - Orifice Diameter: 7/16 in
- - Seal Material: NBR
- - Operating Pressure Differential: 0 psi minimum to 8 psi maximum (Air/Inert Gas, Water)
- - Gas Capacity: 151,000 BtuH
- - Mounting Orientation: Horizontal or Vertical
- - Environmental Rating: Indoor, Outdoor
- - Dimensions: Overall Height 4-5/16 in
- Overall Length 2-9/32 in
- Overall Width 1-15/16 in
- - Standards: CSA, FM, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.20
- Package Width: 3.00
- Package Height: 5.10
- Package Weight: 1.64
