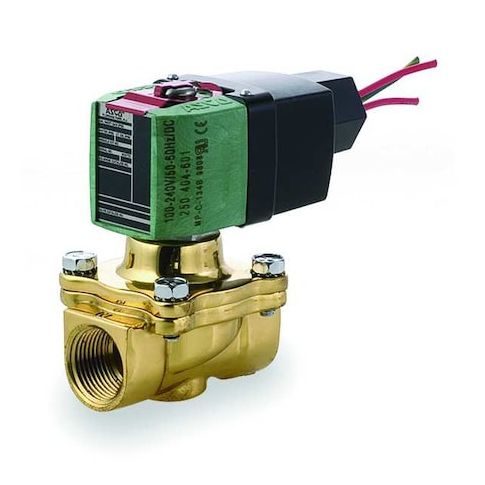

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1-1/2 in Pipe Size, 100V to 240V AC/DC, Brass MPN:8210P022

• The ASCO 8210P022 solenoid valve is a pilot operated, normally closed valve designed for controlling the flow of air, water, and light oil in various industrial systems. Featuring a 2-way/2-position valve design with a 1-1/4 inch orifice diameter and 1-1/2 inch nominal pipe size, it enables remote and automated flow control by utilizing an energized coil to actuate a plunger that opens or closes the fluid path. It operates within an ambient temperature range of 14°F to 140°F and can handle fluid temperatures up to 180°F.

  Key Features:

  • - Flow capacity defined by orifice diameter: 1-1/4 in
  • - Valve Design: 2-Way/2-Position with 2-Way flow paths
  • - Orifice Diameter: 1-1/4 in for flow control
  • - Nominal Pipe Size: 1-1/2 in with NPT inlet and outlet connections
  • - Operating Pressure Differential (Max): 350 psi for Air/Inert Gas, 150 psi for Water, 100 psi for Light Oil
  • - Operating Pressure Differential (Min): 5 psi for Air/Inert Gas, Light Oil, and Water
  • - Electrical: Voltage rating 100-240 VAC/VDC
  • coil power 1.5 W
  • frequency 60 Hz
  • - Coil enclosure: Watertight
  • electrical connection via 1/2 in conduit hub
  • no external junction box
  • - Coil Insulation: Class H rated
  • - Environmental rating: IP66
  • suitable for indoor and outdoor use
  • - Seal Material: NBR
  • - Mounting Orientation: Vertical
  • - Dimensions: Overall Height 6-1/8 in, Length 4 in, Width 4-3/8 in
  • - Response Time: Approximately 1 second
  • - Includes coil and seal
  • - Standards: UL Listed
  • - IP Rating: 66
