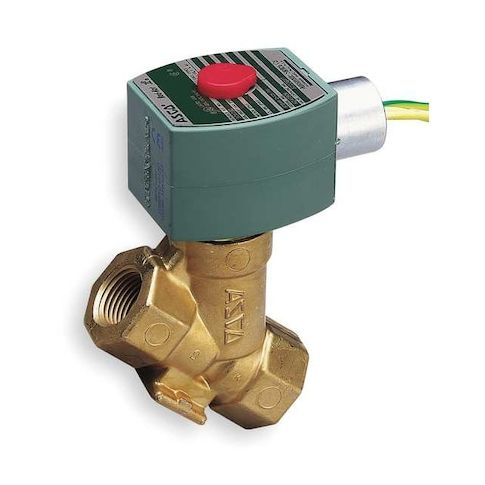

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/4 in Pipe Size, 120V AC, High Temperature MPN:8222G049

• The ASCO 8222G049 is a pilot operated, normally closed solenoid valve suitable for steam flow control in systems operating within ambient temperatures 32°F–125°F and steam fluid temperatures up to 353°F. Constructed with a brass body and PTFE seals, this valve supports operation within ambient temperatures ranging from 32°F to 125°F and fluid temperatures up to 353°F for steam. Automation-capable control of steam flow via external signals

• 3/4 in nominal pipe size connection
• 120V AC coil operation, featuring NPTF inlet and outlet ports and a Y-shape diaphragm valve design with a 2-position, 2-way configuration.

  Key Features:

  • - Valve Body Material: Brass
  • - Seal Material: PTFE
  • - Valve Type: High Temperature
  • - Operation Type: Pilot Operated
  • - Valve Starting Configuration: Normally Closed
  • - Valve Ways: 2-Way
  • - Valve Positions: 2-Position
  • - Nominal Pipe Size: 3/4 in
  • - Orifice Diameter: 1/2 in
  • - Center Line Pipe Center Size: 4-1/64 in
  • - Maximum Ambient Temperature: 125°F
  • - Minimum Ambient Temperature: 32°F
  • - Maximum Fluid Temperature (Steam): 353°F
  • - Maximum Operating Pressure Differential (Steam): 135 psi
  • - Minimum Operating Pressure Differential (Water): 2 psi
  • - Coil Enclosure: Watertight
  • junction box not included
  • - Coil Insulation Class: H
  • - Electrical Connections: 1/2 in Conduit with 18 in Leads
  • - Frequency: 50 Hz, 60 Hz
  • - Includes Coil: Yes
  • - Environmental Rating: Indoor/outdoor washdown environments
  • hazardous-location suitability not specified.
  • - Standards: CSA, UL Listed
  • - NEMA Enclosure Rating: 1, 2, 3, 3S, 4, 4X
  • - Dimensions (L x W x H): 2-3/4 in x 1-15/16 in x 4-13/16 in
  • - Voltage: 120V AC
  • - Wattage: 10.1 W
