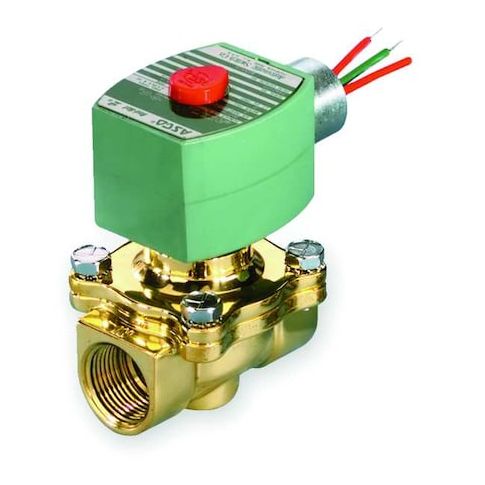

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/4 in Pipe Size, 120V AC, High Flow, Brass MPN:8030G003
Free Shipping
In Stock
The ASCO 8030G003 2-Way Solenoid Valve is a reliable and efficient solution for various applications requiring high flow rates and precise control. Suitable for use with air, inert gas, and water, this valve features a durable brass body with NBR seals and IP66-rated environmental protection, enabling seamless operation in both indoor and outdoor settings. Its direct acting design and compact size make it ideal for use in plumbing, HVAC, and industrial systems, where precise fluid control is critical. With its high flow rate and versatility, this valve is an excellent choice for a wide range of applications.
Top product features:
- Direct acting operation enables immediate response to electrical signal
- High flow design allows for efficient fluid transfer
- IP66-rated environmental protection ensures reliable operation in harsh conditions
Top product applications:
- Automotive Air Conditioning Systems
- Industrial Process Control Systems
- Medical Gas Systems
The ASCO 8030G003 is a 2-way, 2-position, normally closed solenoid valve designed for direct acting operation. It features a brass body with NBR seals and IP66-rated environmental protection (dust/in water ingress) enabling indoor/outdoor operation. Including the coil, it operates on 120V AC at 50 and 60 Hz frequencies, consuming 10.1 watts. Media compatibility: Air, Inert Gas, Water
- maximum fluid temperature 200°F and an ambient temperature range of 14°F to 140°F. It has a 3/4 in nominal pipe size with NPTF inlet and outlet connections.
Key Features:
- - Valve Design: 2-Way/2-Position, Normally Closed
- - Operation: Direct Acting
- - Body Material: Brass
- - Seal Material: NBR
- - Electrical: 120V AC, 10.1 W, 50/60 Hz
- - Coil Enclosure: Without Junction Box
- IP66-rated enclosure
- - Electrical Connection: 1/2 in Conduit Hub
- - IP66-rated environmental protection
- - IP Rating: 66
- - Maximum Ambient Temperature: 140°F
- Minimum: 14°F
- - Maximum Fluid Temperature: 200°F
- - Media compatibility: Air, Inert Gas, Water
- - Maximum Operating Pressure Differential: 2 psi (Air/Inert Gas, Water)
- - Minimum Operating Pressure Differential: 0 psi (Air/Inert Gas, Water)
- - Orifice Diameter: 3/4 in
- - Nominal Pipe Size: 3/4 in
- - Connection Type: Inlet and Outlet NPTF threads
- - Mounting Orientation: Vertical
- - Overall Dimensions: Length 2-13/16 in, Width 2-1/4 in, Height 4-1/16 in
- - Valve Type: High Flow
- - Standards: CSA, FM, UL Listed
