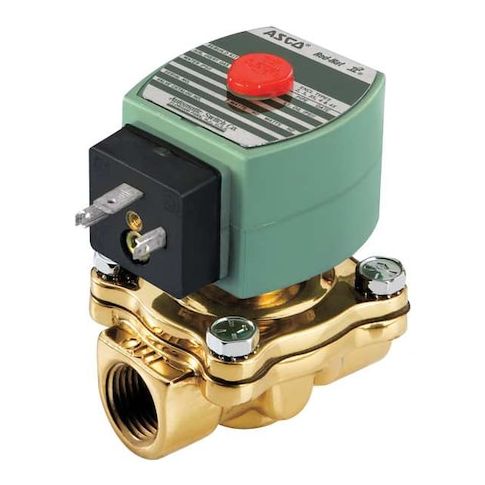

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/8 in Pipe Size, 120V AC, High Flow, Brass MPN:SC8210G001
The ASCO SC8210G001 solenoid valve is a reliable and efficient solution for controlling air, inert gas, light oil, and water flow in various applications. Its normally closed valve starting configuration and high flow design ensure precise control and high performance. Suitable for use in air compressors, car wash systems, industrial water control, laundry equipment, and pumps, this valve offers a range of benefits including easy installation, fast response time, and durable construction. With its compact design and IP66 rating, it can withstand harsh environments and extreme temperatures, making it an ideal choice for demanding applications.
Top product features:
- The valve features a normally closed valve starting configuration.
- The valve is designed for high flow with a 5/8 inch orifice diameter.
- The valve operates on standard mains voltage at 120V AC.
Top product applications:
- Air Compressors
- Car Wash
- Industrial Water Control
The ASCO SC8210G001 is a pilot-operated, 2-way/2-position solenoid valve designed to control the flow of air, inert gas, light oil, and water. It features a normally closed valve starting configuration and a high flow valve type with a 5/8 inch orifice diameter. Rated for 120V AC, 50/60 Hz input, this valve operates on standard mains voltage. It supports vertical mounting orientation and is rated for indoor and outdoor environments. The valve comes complete with coil and sealing components included.
Key Features:
- - Body Material: Brass
- - Valve Design: 2-Way/2-Position
- - Valve Starting Configuration: Normally Closed
- - Valve Type: High Flow
- - Valve Ways: 2-Way
- - Operating Pressure Differential Maximums: 200 psi Air/Inert Gas, 135 psi Light Oil, 150 psi Water
- - Operating Pressure Differential Minimums: 5 psi Air/Inert Gas, Light Oil, Water
- - Ambient Temperature Range: 14°F to 140°F
- - Fluid Temperature Maximum: 180°F
- - Coil Enclosure: watertight
- junction box not included
- - Coil Insulation Class: F
- - Electrical Connections: 1/2 in Conduit Hub
- - Inlet/Outlet Connection Type: NPTF with NPT thread type
- - Seal Material: NBR
- - Response Time: 1 second
- - Nominal Pipe Size: 3/8 in
- - Dimensions: Overall Height 3-3/8 in, Length 2-3/4 in, Width 2-5/16 in
- - Environmental Rating: Indoor, Outdoor
- - IP Rating: 66
- - NEMA Enclosure Ratings: 1, 2, 3, 3S, 4, 4X
- - Includes: Coil and Seal
- - Application Areas: Air Compressors, Car Wash, Industrial Water Control, Laundry Equipment, Pumps
- - Wattage: 6.1 W
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.20
- Package Width: 3.00
- Package Height: 5.10
- Package Weight: 1.85
