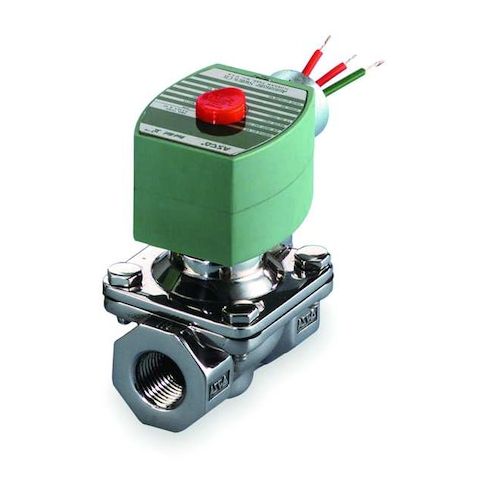

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/4 in Pipe Size, 120V AC, High Flow, NBR MPN:8210G088
The ASCO 8210G088 solenoid valve is a reliable and efficient solution for controlling the flow of air, inert gases, light oil, and water in various industrial systems. Its pilot-operated, normally closed design allows for automated flow control, while its high flow capacity and Cv of 4.5 make it suitable for applications requiring high fluid flow rates. With its wide range of compatibility and ability to operate in temperatures up to 175°F, this valve is ideal for use in heating, ventilation, and air conditioning systems, as well as in chemical and water treatment plants.
Top product features:
- 2-way/2-position valve with Cv 4.5, a 3/4 inch nominal pipe size, and NPTF inlet and outlet connections
- Pilot-operated, normally closed solenoid valve with automated flow control
- High flow rate with a maximum pressure differential of 150 psi for air, inert gas, and water, and 125 psi for light oil
Top product applications:
- Air Compressor Systems
- Industrial Process Control Systems
- Water Treatment and Filtration Systems
The ASCO 8210G088 is a pilot-operated, normally closed solenoid valve engineered to control the flow of air, inert gases, light oil, and water. It features a 2-way/2-position valve with Cv 4.5, a 3/4 inch nominal pipe size, and NPTF inlet and outlet connections. Mounting orientation: vertical. Environmental rating: IP66
- UL Listed
- NEMA configurations 1, 2, 3, 3S, 4, 4X. Ambient temperatures range from 14°F to 140°F and fluid temperatures up to 175°F. It operates with a maximum pressure differential of 150 psi for air, inert gas, and water, and 125 psi for light oil. The valve includes the coil and seals necessary for installation and operation, offering automated flow control in various industrial systems.
Key Features:
- - Valve Design: 2-Way/2-Position, normally closed configuration
- - Operation Type: Pilot operated
- - Connections: 3/4 in nominal pipe size, NPTF inlet and outlet thread type
- - Material: Stainless steel valve body with NBR seal material
- - Electrical: 120V AC voltage, 17.1 W coil wattage, coil insulation class F
- - Coil Enclosure: Watertight without junction box
- - Electrical Connections: 1/2 in conduit hub
- - Environmental Rating: IP66
- UL Listed
- NEMA configurations 1, 2, 3, 3S, 4, 4X
- - Flow Capacity: Cv of 4.5 with 5/8 in orifice diameter
- - Dimensions: Overall height 4-3/16 in, length 2-13/16 in, width 2-5/16 in
- - Response Time: 1 second
- - Ambient Temperature Range: 14°F to 140°F
- - Fluid Compatibility: Air, inert gas, light oil, water
- - Maximum Fluid Temperature: 175°F
- - Operating Pressure Differential: 0 to 150 psi for air/inert gas and water, 0 to 125 psi for light oil
- - Includes: Coil and sealing components
- - IP Rating: 66
- - Standards: UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 4.20
- Package Height: 3.10
- Package Weight: 2.40
