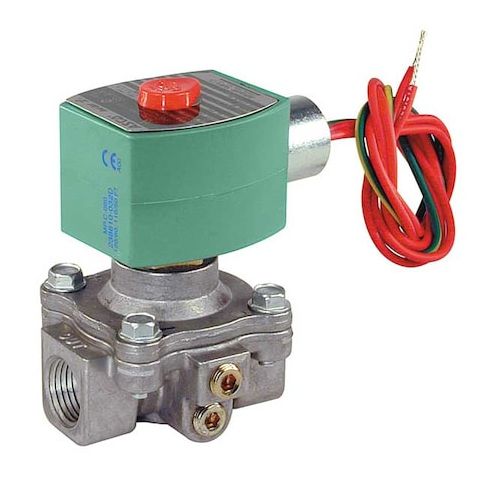

Solenoid Valve, 2-Way, 2-Position, Normally Open, 1/2 in Pipe Size, 120V AC, Pilot Operated, NBR MPN:8214G023
The ASCO 8214G023 is a reliable and efficient solenoid valve designed for controlling fuel gas and gas flow in various applications. Its 2-way, 2-position design and normally open configuration make it ideal for use in HVAC, industrial processes, and energy management systems. The valve's pilot-operated design ensures precise control and high flow rates, while its aluminum body construction and NBR seals provide durability and resistance to corrosion. With a wide operating temperature range and high pressure differential capabilities, this valve is suitable for use in both indoor and outdoor hazardous environments, making it a valuable asset for industries requiring precise gas control.
Top product features:
- 2-way, 2-position design, normally open, with a coil and seals required for operation
- Pilot-operated, with a maximum allowable pressure differential of 5 psi for air, inert gas, fuel gas, and water
- High flow gas shut off with a test port for controlling fuel gas and gas flow
Top product applications:
- Fuel Gas Control
- Gas Flow Control
- High Flow Gas Shut Off
The ASCO 8214G023 is a double solenoid, pilot-operated valve designed for controlling fuel gas and gas flow. Featuring a 2-way, 2-position design, it is normally open and includes an coil and seals required for operation. Aluminum body construction. The valve operates within an ambient temperature range of -40°F to 140°F, handling fluid temperatures up to 125°F, with a maximum allowable pressure differential of 5 psi for air, inert gas, fuel gas, and water. It is constructed for vertical mounting and comes with a general-purpose, watertight coil enclosure without a junction box, Environment Rating: Hazardous, Indoor, Outdoor.
Key Features:
- - Orifice Diameter: 3/4 in
- - Nominal Pipe Size: 1/2 in
- - Valve Design: 2-Way/2-Position, Normally Open
- - Actuator Type: Double Solenoid
- - Operating Voltage: 120V AC at 60 Hz
- - Wattage: 17.1 W
- - Coil Insulation Class: F
- - Electrical Connections: 1/2 in Conduit
- - Inlet/Outlet Connection Type: NPTF with NPT thread type
- - Seal Material: NBR (Buna-N)
- - Maximum Flow Coefficient (Cv): 4.4
- - Response Time: 1 second
- - Dimensions: 4-1/2 in height, 3-7/16 in length, 2-1/2 in width
- - Environment Rating: Hazardous, Indoor, Outdoor
- - Standards: CSA, FM, UL
- - Gas Capacity: 206,250 BtuH
- - Mounting Orientation: Vertical
- - Valve Type Features: High Flow Gas Shut Off, Test Port
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.20
- Package Width: 3.00
- Package Height: 5.10
- Package Weight: 1.73
