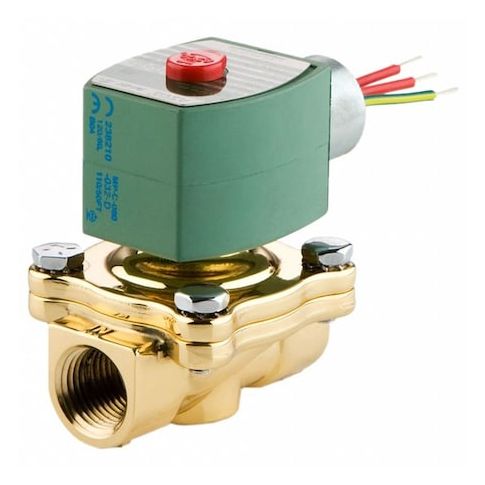

Solenoid Valve, 2-Way, 2-Position, Normally Open, 3/4 in Pipe Size, 12V DC, High Flow, Brass, NBR MPN:8210G035LF 12/DC

• The ASCO 8210G035LF 12/DC is a pilot-operated, normally open solenoid valve for use with air, inert gases, light oil, and water within the specified pressure and temperature ranges. With a brass body and NBR seals, it provides automated fluid control with a 3/4 in orifice and 2-way valve configuration. Rated for ambient operation from 14°F to 140°F and rated for fluid temperatures up to 180°F. For use with air, inert gases, light oil, and water within the specified pressure ranges (0 to 350 psi for air/inert gas, 0 to 150 psi for water, 0 to 125 psi for light oil).

  Key Features:

  • - Valve Type: High Flow, Pilot Operated
  • - Valve Starting Configuration: Normally Open
  • - Nominal Pipe Size and Orifice Diameter: 3/4 in
  • - Body Material: Brass with NBR seal material
  • - Electrical Voltage and Wattage: 12V DC, 10.1 W coil power
  • - Coil Enclosure and Insulation Class: Watertight enclosure, Class F insulation
  • - Electrical Connections: 1/2 in Conduit Hub
  • - Environmental Rating: Indoor and Outdoor use with IP66 and NEMA 1, 2, 3, 3S, 4, 4X ratings
  • - Ambient temperature range: 14°F to 140°F
  • - Maximum Fluid Temperature: 180°F
  • - Operating Pressure Differential Range: 0 to 350 psi (air/inert gas)
  • 0 to 150 psi (water)
  • 0 to 125 psi (light oil)
  • - Valve Positions: 2-Position
  • - Includes Coil and Seal
  • - Mounting Orientation: Vertical
  • - Standards: UL Listed
  • - Physical Dimensions: Overall Height 4-5/8 in, Length 2-13/16 in, Width 2-5/16 in
  • - Response Time: Approximately 1 second
