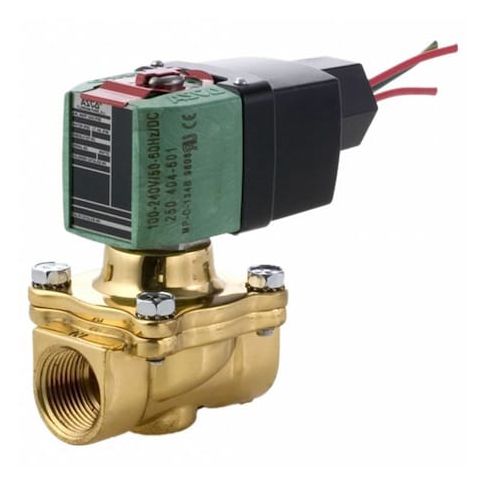

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 100V to 240V AC/DC, High Flow MPN:8210P094LF 100-240
The ASCO 8210P094LF solenoid valve is a high-performance solution for controlling air, inert gases, light oil, and water flow in various applications. Its 2-way, 2-position configuration and high flow valve type enable efficient regulation of fluid flow, while its pilot-operated design ensures reliable operation. Suitable for use in industrial settings, laboratories, and other environments, this valve excels in applications such as process control, pneumatic systems, and hydraulic circuits. Its compact design and robust construction make it an ideal choice for a wide range of industries, including manufacturing, healthcare, and energy.
Top product features:
- High Flow Valve Type allows for efficient control of fluid flow
- 2-Way, 2-Position Valve Configuration enables precise control over fluid flow direction
- Watertight Coil Enclosure protects the electrical components from environmental damage
Top product applications:
- Air Compressor Systems
- Pneumatic Tool Systems
- Water Treatment Plants
The ASCO 8210P094LF 100-240 is a pilot-operated, normally closed solenoid valve designed to control the flow of air, inert gases, light oil, and water through a 1/2 inch nominal pipe size. It features a 2-way, 2-position valve configuration with a high flow valve type and a 5/8 inch orifice diameter. Operating temperature range: 14°F to 140°F. Maximum media temperature: 180°F. Environmental rating: Indoor, Outdoor. This valve includes a watertight coil enclosure with a 1/2 inch conduit hub electrical connection and is supplied with an integrated coil rated for 100 to 240V AC/DC at 60 Hz. The valve is designed for vertical mounting. Response time: 1 second.
Key Features:
- - Valve Type: High Flow, Pilot Operated, Normally Closed
- - Valve Configuration: 2-Way, 2-Position
- - Orifice Diameter: 5/8 in
- - Nominal Pipe Size: 1/2 in
- - Fluid Compatibility: Air, Inert Gases, Light Oil, Water
- - Operating Pressure Differential: Maximum 350 psi for Air/Inert Gas
- 150 psi for Water
- Minimum 0 psi
- - Operating Temperature Range: 14°F to 140°F
- - Maximum Media Temperature: 180°F
- - Electrical: 100 to 240V AC/DC, 60 Hz
- Wattage: 1.5 W
- Coil Enclosure: Watertight
- Electrical Connections: 1/2 in Conduit Hub
- - Mounting Orientation: Vertical
- - Seal Material: NBR
- - Environmental rating: Indoor, Outdoor
- - Standards: UL Listed
- - Response time: 1 second
- - Includes Coil: Yes
- - Thread Type: NPT
- Inlet and Outlet Connection Type: NPTF
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 3.00
- Package Height: 4.50
- Package Weight: 2.50
