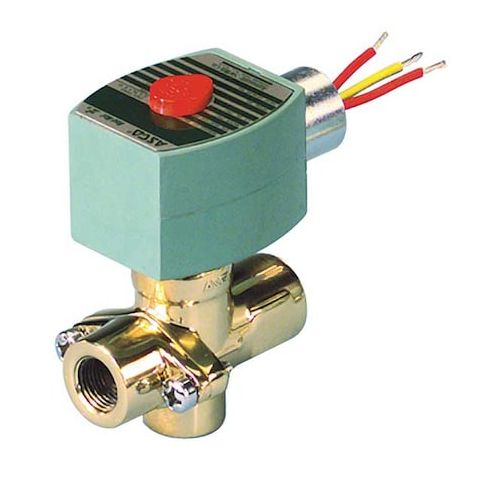

Solenoid Valve, 2-Way, 2-Position, Normally Open, 1/2 in Pipe Size, 120V AC, Self-Cleaning, Brass MPN:8267G015
The ASCO 8267G015 Solenoid Valve is a reliable and efficient solution for various industrial applications, including steam service. Its brass-bodied design provides durability and resistance to corrosion, while its normally open 2-way/2-position configuration allows for easy control of fluid flow. The valve's self-cleaning feature ensures optimal performance and minimizes maintenance needs. With a wide operating temperature range and pressure ratings up to 15 psi steam, this valve is suitable for use in a variety of settings, including indoor and outdoor applications. Its compact design makes it ideal for use in tight spaces, providing a reliable and efficient solution for industrial processes.
Top product features:
- Self-cleaning design to prevent debris buildup and ensure consistent performance
- Normally open 2-way/2-position solenoid valve configuration allows for easy switching between open and closed positions
- PTFE seal material provides resistance to corrosion and ensures reliable fluid sealing
Top product applications:
- Steam Systems: The ASCO 8267G015 is suitable for use in steam systems, including applications such as steam distribution, steam control, and steam management.
- Industrial Automation: The solenoid valve can be used in industrial automation applications, such as process control, fluid handling, and fluid control systems.
- HVAC Systems: The valve can also be used in heating, ventilation, and air conditioning (HVAC) systems, including applications such as steam heating, humidification, and dehumidification.
The ASCO 8267G015 is a brass-bodied, normally open 2-way/2-position solenoid valve rated for steam service. It operates with a 120V AC power supply at 60 Hz and includes the solenoid coil and sealing components needed for installation. Environmental rating: indoor/outdoor use. Fluid temperature rating: 250°F (steam). Ambient temperature rating: 125°F maximum. Actuation: solenoid-driven.
Key Features:
- - Valve Configuration: 2-Way, 2-Position, Normally Open
- - Body Material: Brass
- - Seal Material: PTFE
- - Coil Electrical: 120V AC, 60 Hz, 16.1 W wattage
- - Coil Enclosure: Watertight, without junction box
- - Electrical Connections: 1/2 in Conduit with 18 in Leads
- - Operating Temperature: Ambient temperature rating: 125°F maximum
- Fluid temperature rating: 250°F (steam)
- - Pressure Ratings: Operating differential pressure 0 to 15 psi steam
- - Dimensions: Overall length 3-7/16 in, height 4-5/16 in, width 2-1/16 in
- center line pipe center 3-21/64 in
- - Orifice Diameter: 3/8 in
- - Includes Coil: Yes, Includes Seal: Yes
- - Environmental rating: Indoor/Outdoor use
- - Standards: UL Listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.30
- Package Width: 4.10
- Package Height: 5.40
- Package Weight: 2.00
