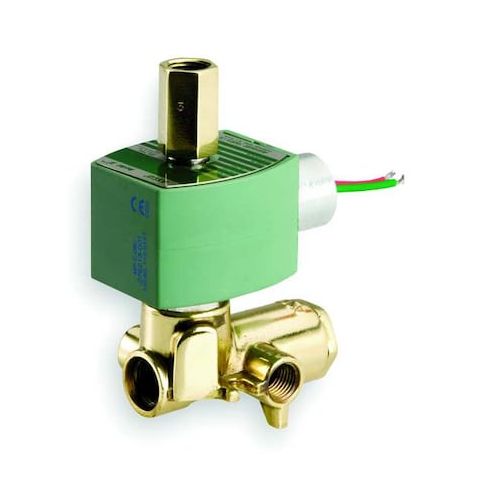

Solenoid Valve, 4-Way, 2-Position, 1/4 in Pipe Size, 120V AC, NAMUR Mount, Pilot Operated, Brass MPN:8345H003

• The ASCO 8345H003 Solenoid Valve is a NAMUR-mount, 4-way/2-position solenoid valve rated for controlling air and inert gas media

• media compatibility: air and inert gases
• horizontal or vertical mounting. It features a single air pilot actuator. The valve body is brass with NBR seals and has a 1/4 in NPTF threaded inlet and outlet connections. Coil included
• 10.1 W power consumption, 120V AC, 60 Hz. The valve is rated for a maximum fluid temperature of 180°F and is suitable for indoor and outdoor use
• environmental protection rated IP66 and listed NEMA configurations (1, 2, 3, 3S, 4, 4X).

  Key Features:

  • - Valve Design: 4-Way/2-Position with 2-Position operation
  • - Actuator Type: Single Air Pilot
  • - Body Material: Brass
  • - Seal Material: NBR
  • - Nominal Pipe Size: 1/4 in
  • - Connection Types: Inlet and Outlet NPTF threaded
  • - Coil: Included
  • enclosure IP66-rated
  • - Electrical Connections: 1/2 in conduit with 18 in leads
  • - Operating Pressure Differential: Minimum 10 psi, Maximum 150 psi for air/inert gas
  • - Media Compatibility: Air and inert gases
  • - Mounting Orientation: Horizontal or Vertical
  • - Overall Dimensions: Height 4-11/16 in, Length 3 in, Width 2-1/16 in
  • - Environmental Rating: Indoor and outdoor use
  • IP66 and NEMA 1, 2, 3, 3S, 4, 4X ratings
  • - Orifice Diameter: 1/16 in
  • - Valve Type: NAMUR Mount
