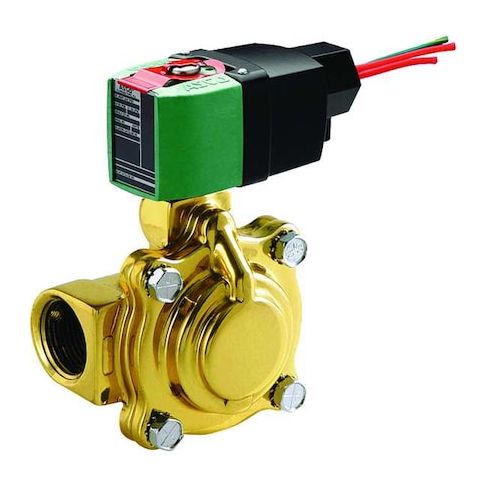

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1-1/4 in Pipe Size, 100V to 240V AC/DC, Brass MPN:8210P008
The ASCO 8210P008 pilot-operated solenoid valve is a reliable and efficient solution for controlling flow in various applications. Suitable for use with air, inert gas, light oil, and water, this 2-way/2-position valve features a normally closed configuration and operates at a wide range of pressures. With a brass body and NPT connections, it's ideal for use in industrial settings where precision and durability are crucial. The valve's fast response time and wide operating temperature range make it suitable for use in a variety of applications, including HVAC, manufacturing, and water treatment systems.
Top product features:
- Pilot-operated design allows for precise control over fluid flow.
- NPT inlet and outlet connections enable easy integration with a wide range of piping systems.
- The valve body is constructed from brass, providing high durability and resistance to corrosion.
Top product applications:
- Air Compressor Systems
- Automotive Fuel Injection Systems
- Industrial Process Control Systems
The ASCO 8210P008 is a pilot-operated, 2-way/2-position solenoid valve with a normally closed configuration. Controls flow for air, inert gas, light oil, and water within differential pressure ratings: 350 psi (air/inert gas), 100 psi (light oil), 150 psi (water). The valve body is constructed from brass and features NPT inlet and outlet connections with a nominal pipe size of 1-1/4 inches and a center line pipe center size of 2 inches. Coil and seals included. Mounting orientation: vertical. The coil has an H insulation class and operates at 100V to 240V AC/DC with a frequency of 60 Hz. Response time: 1 second. Operating temperatures: ambient 14-140°F
- fluid temperatures up to 180°F.
Key Features:
- - Valve Design: 2-Way/2-Position, Normally Closed
- - Operation Type: Pilot Operated
- - Body Material: Brass
- - Connection Types: Inlet and outlet NPT threads, nominal pipe size 1-1/4 in
- - Flow Capacity: Cv of 15 with 1-1/8 in orifice diameter
- - Pressure Ratings: Maximum differential 350 psi (air/inert gas), 100 psi (light oil), 150 psi (water)
- minimum differential 5 psi for all media
- - Electrical: Coil wattage: 1.5 W
- coil included
- 100V to 240V AC/DC, 60 Hz frequency, and 1/2 in conduit hub connections
- - Enclosure ratings: IP66
- NEMA 1, 2, 3, 3S, 4, 4X
- - Mounting orientation: Vertical
- - Seal Material: NBR
- - Dimensions: Overall length 4 in, height 5-5/8 in, width 3-3/4 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.80
- Package Width: 5.60
- Package Height: 6.00
- Package Weight: 5.38
