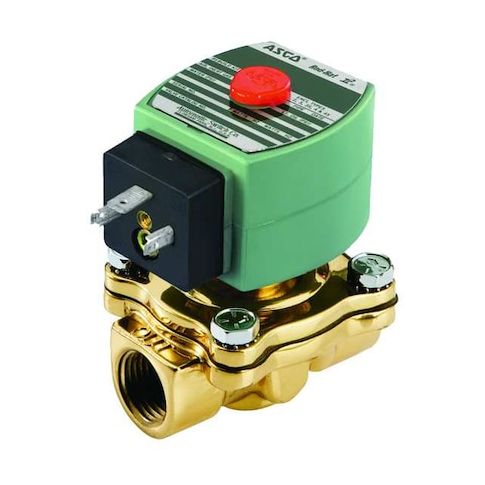

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 120V AC, High Flow, Brass MPN:SC8210G002

• The ASCO SC8210G002 is a pilot-operated, normally closed solenoid valve engineered for automated control of fluid and gas flow. Constructed with a brass body and NBR seals, it accommodates air, inert gases, light oil, and water with a maximum fluid temperature of 180°F. This valve is designed with a 5/8 inch orifice and a nominal pipe size of 1/2 inch, featuring NPTF inlet and outlet connections. Its 2-way/2-position configuration supports flow control by opening or closing the path via an energized solenoid coil, which is included. Mounting is recommended in a vertical orientation.

  Key Features:

  • - Operating ambient temperature range: 14°F to 140°F
  • - Maximum Operating Pressure Differential: 200 psi for Air/Inert Gas, 135 psi for Light Oil, 150 psi for Water
  • - Minimum Operating Pressure Differential: 5 psi for Air/Inert Gas, Light Oil, and Water
  • - Coil Insulation Class: F
  • Wattage: 6.1 W
  • Voltage: 120V AC
  • Frequency: 50 Hz, 60 Hz
  • - Coil Enclosure is IP66-rated watertight
  • no external junction box required
  • Electrical Connections: 1/2 in Conduit Hub
  • - Enclosure rated for indoor and outdoor use (IP66)
  • - Valve Design: 2-Way/2-Position
  • Valve Type: High Flow
  • Valve Starting Configuration: Normally Closed
  • - Response time: 1 second (typical per specification)
  • - Overall Dimensions: Height 3-5/16 in, Length 3 in, Width 2-5/16 in
  • Center Line Pipe Size: 2-13/16 in
  • - Includes Coil and Seal
  • Seal Material: NBR
