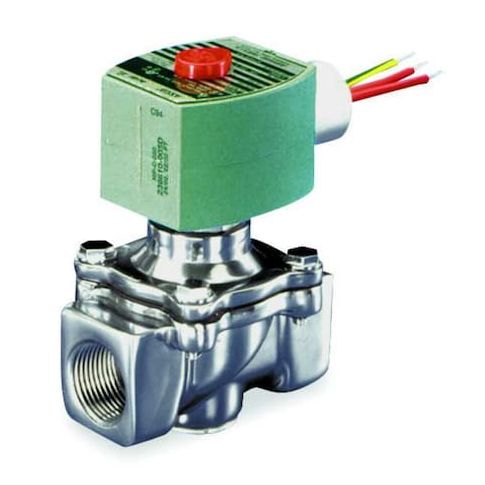

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 120V AC, Pilot Operated, NBR MPN:8214G020

The ASCO 8214G020 is a pilot-operated, normally closed solenoid valve designed for on-off control of fuel gas in commercial and industrial gas burners. It features a double solenoid actuator and high flow gas shut-off capability with a test port. Constructed with an aluminum body and NBR seal material, the valve supports fluid temperatures up to 125°F. Ambient temperature range: -40°F to 125°F. It includes the necessary coil and sealing components for installation. Environmental ratings: Indoor, Outdoor, Hazardous. It uses 120V AC power at 60 Hz frequency. Its design facilitates vertical mounting with NPTF inlet and outlet connections sized for a nominal 1/2 in pipe size.

Key Features:

• - Valve Design: 2-Way/2-Position with Normally Closed starting configuration
• - Operating Pressure Differential: 0 to 5 psi for fuel gas, air/inert gas, and water
• - Orifice Diameter: 3/4 in
• - Coefficient of Volume (Cv): 4.4
• - Gas Capacity: 238,500 BtuH
• - Coil Enclosure: General Purpose, Watertight, without junction box
• - Coil Insulation Class: F
• - Electrical Connections: 1/2 in conduit
• - Ambient temperature range: -40°F to 125°F
• - Overall Dimensions: 4-1/32 in height, 2-3/4 in length, 2-3/8 in width
• - Response Time: 1 second
• - Includes: Coil and seal
• - Environmental ratings: Indoor, Outdoor, Hazardous
• - Mounting Orientation: Vertical
• - Standards: CSA, FM, UL certified
• - Wattage: 17.1 W
