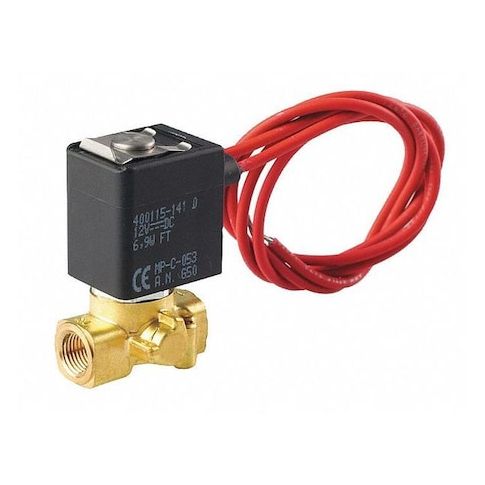

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/8 in Pipe Size, 24V DC, Compact, Brass, FKM MPN:U8256B045V

The ASCO U8256B045V is a compact, direct-acting solenoid valve designed for automated control of fluid or gas flow. It operates as a normally closed, 2-way, 2-position valve with a 1/8 inch orifice diameter and a nominal pipe size of 1/8 inch. Media: Air, Inert Gas, Light Oil, Water, with a maximum fluid temperature rating of 180°F. The valve includes coil and seal. Mounting Orientation: Horizontal or Vertical. It features NPTF inlet and outlet connections with NPT thread type and an open-frame coil enclosure for the 24V DC coil consuming 6.9 watts. Response Time: 20 milliseconds.

Key Features:

• - Valve Design: 2-Way/2-Position, Normally Closed starting configuration
• - Valve Type: Compact, direct acting
• - Body Material: Brass
• - Orifice Diameter: 1/8 inch
• - Nominal Pipe Size: 1/8 inch
• - Connections: Inlet and outlet NPTF with NPT thread type
• - Media: Air, Inert Gas, Light Oil, Water
• - Maximum Operating Pressure Differential: 63 psi for Air/Inert Gas, Water, and Light Oil
• - Maximum Fluid Temperature: 180°F
• - Coil Voltage and Power: 24V DC, 6.9 watts
• - Coil Enclosure: Open Frame, Coil Insulation Class F
• - Electrical Connections: 18 inch leads
• - Mounting Orientation: Horizontal or Vertical
• - Environmental and Enclosure Ratings: Indoor use, NEMA 4 and 4X, IP66
• - Dimensions: Overall Length 1-5/8 in, Width 1 in, Height 2-1/4 in
• - Response Time: 20 milliseconds
• - Seal Material: FKM
• - Includes Coil and Seal
• - Standards: CSA, NSF, UL Listed
