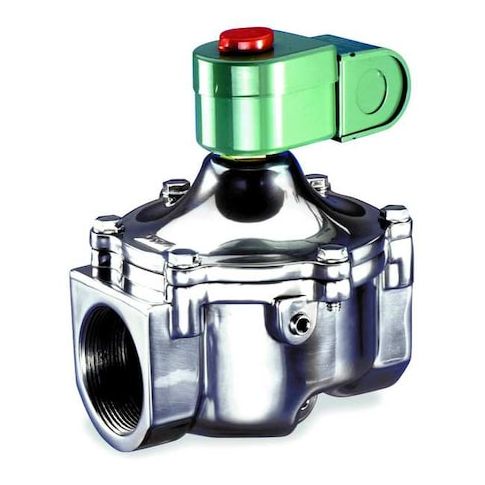

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3 in Pipe Size, 120V AC, High Flow, Aluminum MPN:8215A040CSA

• The ASCO 8215A040CSA is a 2-way, 2-position normally closed solenoid valve designed for air and vacuum service. It operates with a direct acting mechanism and includes the coil required for actuation. Constructed with an aluminum body and featuring NBR seals, this valve provides remote and automated control of fluid flow using a 3-inch orifice. The valve's maximum fluid temperature rating is 104°F and it supports a maximum operating pressure differential of 5 psi for air/inert gas and water. It is equipped with a 120V AC coil consuming 28.2 watts and operates at frequencies of 50 Hz and 60 Hz. Suitable for indoor and outdoor installations

• IP65 and NEMA 1 enclosure ratings, this valve has an IP65 and NEMA 1 enclosure rating and CSA and UL certifications.

  Key Features:

  • - Valve Type: High Flow, Direct Acting
  • - Valve Design: 2-Way/2-Position, Normally Closed
  • - Orifice Diameter: 3 in
  • - Body Material: Aluminum
  • - Seal Material: NBR
  • - Operating Pressure Differential: 0 to 5 psi Air/Inert Gas and Water
  • - Fluid Temperature Maximum: 104°F
  • - Ambient operating range: 32°F to 125°F
  • - Electrical: 120V AC, 28.2 W, 50/60 Hz, 1/2 in Conduit with 18 in Leads
  • - Coil Enclosure: General Purpose, Without Junction Box, Insulation Class F
  • - Enclosure Rating: IP65, NEMA 1
  • suitable for indoor and outdoor installations
  • - IP/NEMA Rating: IP65, NEMA 1
  • - Connection Type: Inlet and Outlet NPTF threaded, Nominal Pipe Size 3 in
  • - Includes: Coil and Seal
  • - Response Time: 120 msec
  • - Dimensions: Overall Height 10-1/4 in, Length 7-25/32 in, Width 7-13/16 in
  • - Standards: CSA, UL
