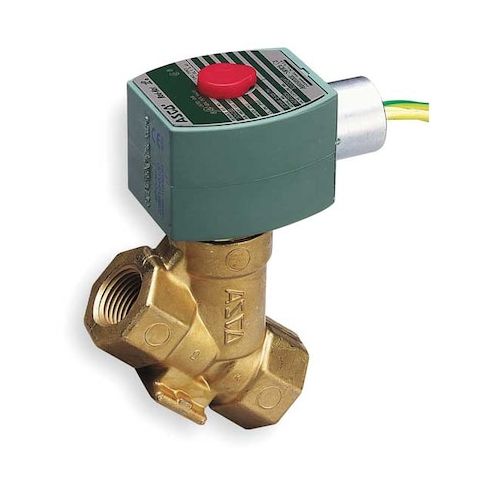

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/8 in Pipe Size, 120V AC, High Temperature MPN:8222G074

• The ASCO 8222G074 is a normally closed, 2-way pilot-operated solenoid valve rated for steam service and compatible media per manufacturer specifications. It features a brass Y-shaped diaphragm valve body with PTFE seals and can operate within ambient temperatures from 32°F to 125°F. The valve is rated for steam service with maximum fluid temperature 353°F and maximum steam differential pressure 135 psi per product specifications. It includes the coil and is equipped with electrical connections via 1/2 inch conduit with 18-inch leads, operating at 120V AC and compatible with 50 Hz and 60 Hz frequencies.

  Key Features:

  • - Valve Type: High Temperature Diaphragm design
  • - Valve Configuration: 2-Way, 2-Position, Normally Closed
  • - Body Material: Brass with PTFE seals
  • - Orifice Diameter: 3/8 inch
  • - Nominal Pipe Size: 3/8 inch with NPT inlet and outlet connections (NPTF thread type)
  • - Operating Pressure Differential: Minimum 1 psi water, Maximum 135 psi steam
  • - Maximum Ambient Temperature: 125°F
  • Minimum Ambient Temperature: 32°F
  • - Maximum Fluid Temperature: 353°F (steam)
  • - Coil Insulation Class: H
  • Wattage: 6.1 W
  • - Coil Enclosure: Watertight without junction box
  • - Electrical: 120V AC supply with 1/2 inch conduit and 18-inch leads
  • - Overall Dimensions: Height 4-3/16 in, Length 2-9/32 in, Width 1-11/16 in
  • - Includes coil and is CSA and UL Listed
  • - Applications: Autoclave, Commercial Laundry, Kitchen Equipment, Molding, Steam Sterilizer
