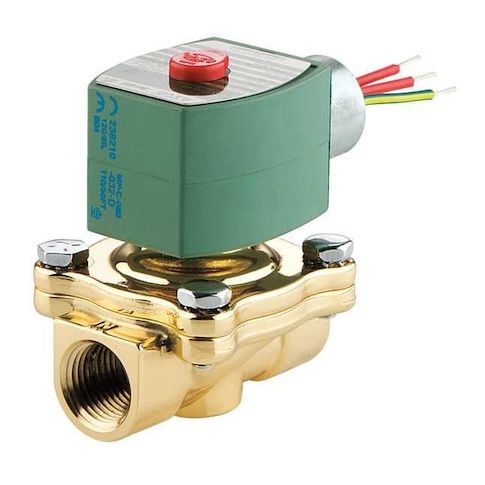

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 120V AC, Manual Operator, NBR MPN:8210G002MO
The ASCO 8210G002MO is a reliable and versatile solenoid valve designed for a variety of applications, including controlling the flow of air, inert gases, light oil, and water. Its 2-way, 2-position design with a nominal pipe size of 1/2 inch makes it ideal for use in industrial settings, such as manufacturing, oil and gas, and water treatment. The valve's pilot-operated design and wide operating temperature range ensure reliable performance in harsh environments, while its compact size and watertight coil enclosure make it easy to integrate into existing systems. Suitable for indoor and outdoor use, this valve is a trusted solution for a range of applications.
Top product features:
- Pilot-operated design allows for precise control over fluid flow
- Normally closed design ensures fluid flow is interrupted when power is removed
- 5/8-inch orifice diameter allows for efficient flow of air, inert gases, light oil, and water
Top product applications:
- Air Compressor Applications: The ASCO 8210G002MO solenoid valve can be used to control the flow of compressed air in various industrial applications, such as pneumatic systems, air-powered tools, and compressed air-powered machinery.
- Oil and Gas Industry: The valve's ability to handle light oil and its compatibility with inert gases make it suitable for applications in the oil and gas industry, such as controlling the flow of oil or gas in pipelines, wellheads, and other equipment.
- Water Treatment and Distribution: The ASCO 8210G002MO solenoid valve can be used in water treatment and distribution systems to control the flow of water, including applications such as water pumps, water treatment plants, and irrigation systems.
The ASCO 8210G002MO is a pilot-operated, normally closed solenoid valve designed for controlling the flow of air, inert gases, light oil, and water. It features a 2-way, 2-position design with a 5/8-inch orifice diameter and a nominal pipe size of 1/2 inch. Rated for indoor and outdoor use per IP66 and NEMA ratings (IP66
- NEMA 1, 2, 3, 3S, 4, 4X), operating ambient temperature range: 14°F to 140°F
- maximum fluid temperature: 180°F.
Key Features:
- - Valve Design: 2-Way/2-Position, Normally Closed
- - Operation Type: Pilot Operated
- - Media Compatibility: Air, Inert Gases, Light Oil, Water
- - Maximum Operating Pressure Differential: 200 psi (Air/Inert Gas), 135 psi (Light Oil), 150 psi (Water)
- - Minimum Operating Pressure Differential: 5 psi (Air/Inert Gas, Light Oil, Water)
- - Orifice Diameter: 5/8 in
- - Body Material: Brass
- - Seal Material: NBR
- - Included Components: Coil and Seal
- - Electrical: 120V AC, 6.1 W, 50/60 Hz frequency, 1/2 in Conduit Hub connection
- - Coil Insulation Class: F
- - Coil Enclosure: Watertight without Junction Box
- - Mounting Orientation: Vertical
- - Environmental and NEMA Ratings: Indoor and outdoor use per IP66 and NEMA ratings (IP66
- NEMA 1, 2, 3, 3S, 4, 4X)
- - Dimensions: 2-3/4 in length, 2-5/16 in width, 3-3/8 in height
- - Response Time: 1 second
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.20
- Package Width: 3.10
- Package Height: 5.10
- Package Weight: 2.10
