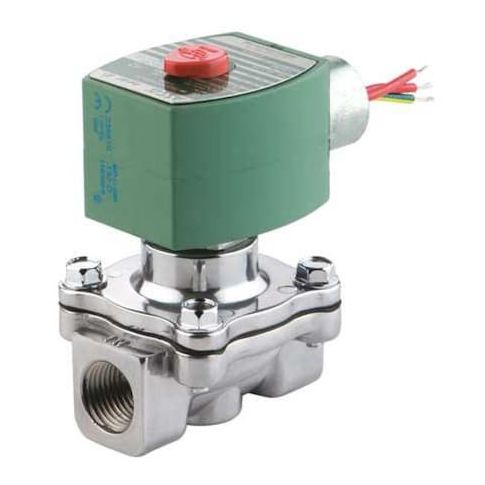

Solenoid Valve, 2-Way, 2-Position, Normally Open, 1/2 in Pipe Size, 120V AC, High Flow, Aluminum MPN:8215G023
Control airflow and vacuum with precision and reliability using the ASCO 8215G023 2-way, 2-position solenoid valve. Designed for pneumatic systems, this direct-acting valve features a normally open starting configuration, allowing for automated and remote operation. With a high flow rate and aluminum body construction, it's suitable for a wide range of applications, including industrial processes, medical equipment, and laboratory settings. The valve's durable design and NBR seal material ensure reliable performance in temperatures up to 125°F, making it an ideal solution for applications requiring precise control and high flow rates.
Top product features:
- Direct-acting design for automated and remote operation
- Normally open valve starting position with automated and remote operation capabilities
- High flow rate with a 3/4 in orifice diameter for efficient media transfer
Top product applications:
- Industrial Automation: The ASCO 8215G023 solenoid valve can be used in industrial automation systems to control the flow of air and vacuum within pneumatic systems, enabling remote operation and automated control.
- Medical Equipment: The valve's high flow rate and ability to operate in a wide temperature range make it suitable for use in medical equipment such as ventilators and anesthesia machines.
- Laboratory Equipment: The ASCO 8215G023 solenoid valve can be used in laboratory equipment to control the flow of air and vacuum in applications such as fume hoods and vacuum systems.
The ASCO 8215G023 is a direct-acting, 2-way, 2-position solenoid valve designed for controlling the flow of air and vacuum within pneumatic systems. It includes the necessary coil and sealing components, allowing for automated and remote operation with a normally open valve starting position. The valve features aluminum body construction and NBR seal material, supporting media temperatures up to 125°F and operating at ambient temperatures from 32°F to 125°F. It is rated for differential pressure from 0 to 125 psi (air/inert gas and water).
Key Features:
- - Valve Design: 2-Way/2-Position, Normally Open starting configuration
- - Valve Type: High Flow with a 3/4 in orifice diameter
- - Body Material: Aluminum with NBR (Buna-N) seals included
- - Electrical: 120V AC supply voltage, 10.1 W coil wattage, Class F coil insulation, 18 in leads
- - Environmental Ratings: Suitable for indoor and outdoor use with IP65 enclosure
- - Connections: Inlet and outlet ports with NPTF threaded connections compatible with NPT thread type
- - Physical Dimensions: Overall length 2-3/4 in
- width 2-3/8 in
- height 4-7/16 in
- - Performance: Coefficient of volume (Cv) of 4, response time of 120 msec
- - Operating Conditions: Ambient temperature range 32°F to 125°F
- fluid temperature max 125°F
- - Operating Pressure: Minimum differential 0 psi, maximum 125 psi for air/inert gas and water
- - Includes coil and seal components for installation
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.10
- Package Width: 4.20
- Package Height: 3.00
- Package Weight: 1.68
