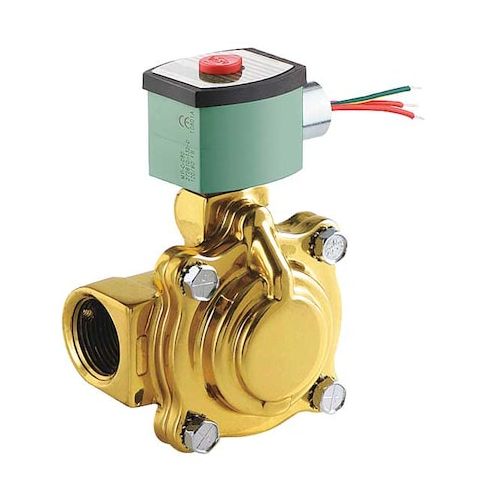

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1 in Pipe Size, 120V AC, High Flow, Brass, NBR MPN:HT8210G004

• The ASCO HT8210G004 Solenoid Valve is a 2-way, 2-position pilot-operated valve with a normally closed starting configuration. Constructed with a brass body and NBR seals, it is designed for controlling the flow of air, inert gases, light oil, and water. The valve has a nominal pipe size of 1 inch with NPTF inlet and outlet connections and operates with a 1-inch orifice diameter. It includes the coil and seal components for installation. This valve is equipped with an IP66-rated coil enclosure with a junction box and 1/2 inch conduit hub electrical connections. Ambient operating temperature range: 14°F to 140°F

• fluid temperature range: up to 180°F
• IP66-rated enclosure
• suitable for indoor/outdoor use.

  Key Features:

  • - Valve Design: 2-Way/2-Position
  • - Operation Type: Pilot Operated
  • - Valve Starting Configuration: Normally Closed
  • - Body Material: Brass
  • - Seal Material: NBR
  • - Nominal Pipe Size: 1 in
  • - Orifice Diameter: 1 in
  • - Inlet/Outlet Connections: NPTF thread type
  • - Electrical Voltage: 120V AC
  • - Wattage: 6.1 W
  • - Coil Enclosure: IP66-rated coil enclosure with junction box and 1/2 inch conduit hub
  • - Electrical Connection: 1/2 in Conduit Hub
  • - Ambient Temperature Range: 14°F to 140°F
  • - Maximum Fluid Temperature: 180°F
  • - Operating Pressure Differential (Maximum): 150 psi for air/inert gas and water
  • 100 psi for light oil
  • - Operating Pressure Differential (Minimum): 5 psi for air/inert gas, light oil, and water
  • - Environmental Rating: Indoor and Outdoor use
  • - IP66 rating
  • - Response Time: 1 second
  • - Valve Type: High Flow
  • - Mounting Orientation: Vertical
  • - Includes Coil: Yes
  • - Includes Seal: Yes
  • - Standards: UL Listed
  • - Dimensions (H x L x W): 5-5/8 in x 3-3/4 in x 3-11/32 in
